Hurco AUTOBEND 5C Workstation

Repair

Call for price

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/56722/image_1920?unique=9c7098a
  • Condition

Purchase Price: $ 0.00 $ 0.00 0.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 38007

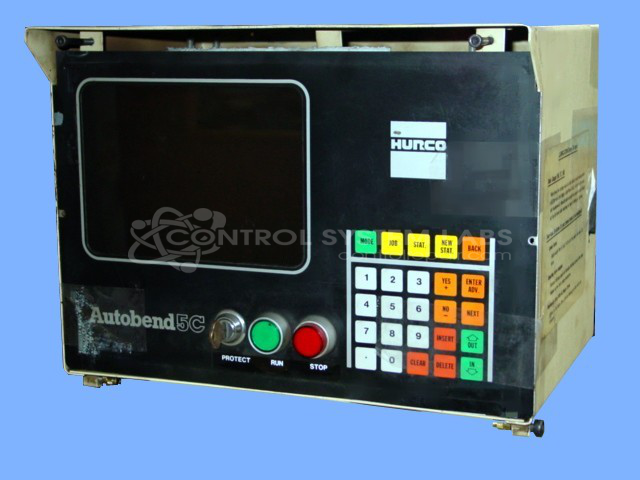

Product Overview: Operator interface workstation for press brake back gauge control systems, used to program and monitor automated sheet metal bending operations. Features an integrated CRT display and membrane keypad for entering bend parameters and gauge positioning. Serves as the primary human-machine interface on gauging control equipment.
Category: Operator / Monitor Workstation
Manufacturer: Hurco
Manufacturer Part Number: AUTOBEND 5C

Common Failures

Common issues reported include dim CRT display, no picture on the CRT with the filament not glowing, and non-functional keypad. These concerns were confirmed during evaluation.

Repair Approach

For the dim CRT issue, the CRT was rejuvenated and a specific capacitor was replaced, followed by operation verification and cleaning. For the issue with no CRT picture, a bent pin on the CRT was straightened, DC supplies were verified, and operational tests were performed. The keypad issue was determined to be Beyond Economic Repair due to a damaged component that could not be replaced, and the unit was returned to the customer.

Testing & Quality

After repairs, units were operationally tested to verify that issues were resolved before return. For items that could not be repaired economically, customers were notified and given the option to have the unit returned or recycled here at no charge.

We do NOT offer repair on this item

Unfortunately, Control System Labs does NOT offer repair for the Hurco part number .  Here are some possible reasons:

  • the parts may no longer be available
  • the item may be encased in plastic epoxy
  • we do not have the necessary equipment to do the repair.

Please contact the manufacturer of this part number to see if a new part number or compatible replacement is available.
