CSL Part Number: 105966

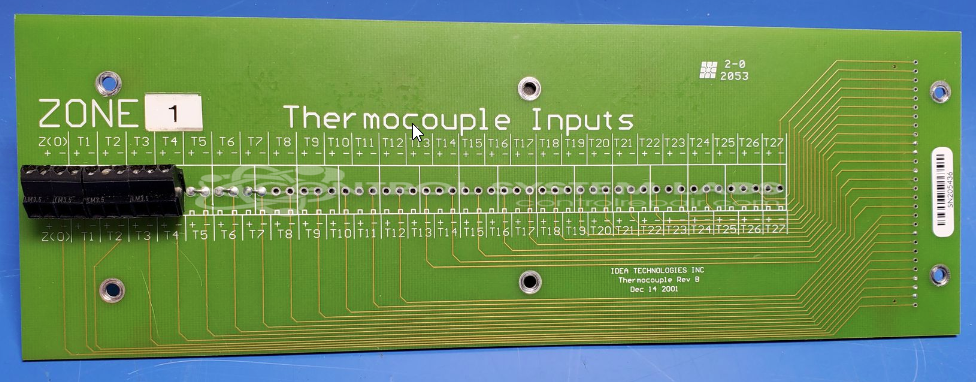

Product Overview: The Thermocouple Input Board by Idea Technologies Inc is a signal conditioning module designed to interface thermocouple temperature sensors with control systems. It features multiple thermocouple input channels (typically 8 or more) with screw terminal connections for field wiring and a rear connector for backplane or system integration. This board is commonly used in industrial temperature monitoring and process control applications including ovens, furnaces, chemical reactors, and manufacturing equipment requiring precise multi-point temperature measurement.
Category: Input Card & Modules
Manufacturer: Idea Technologies Inc
Manufacturer Part Number: Thermocouple Rev B
Limited repair no system test
Common Failures
Issues with the thermocouple board frequently involve the T1 connection, often due to corrosion on the connector. This can affect the reading accuracy, while other connections remain unaffected.
Repair Approach
The repair process typically involves cleaning the affected connector and the board to remove corrosion. This may be followed by resoldering connections and replacing screw terminal connectors as needed. Testing is conducted to confirm that all components function correctly.
Testing & Quality
After repairs, testing is performed to confirm continuity across connectors. This includes physical checks to ensure all screws are secure and functioning as intended.
Limited Repair
The Idea Technologies Inc part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Idea Technologies Inc part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
