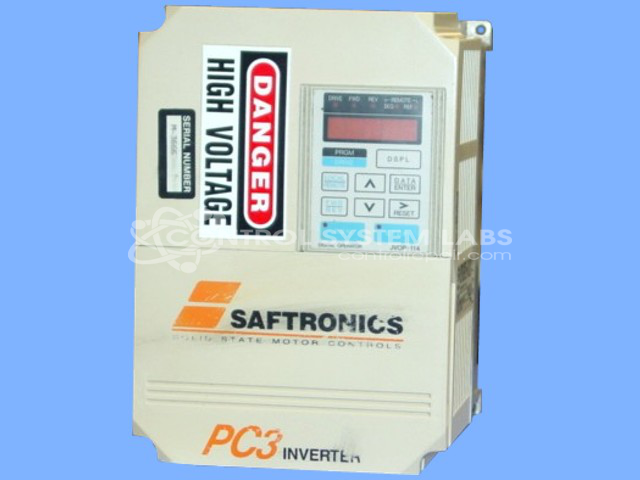

Idm Controls CIMR-PCU22P2 PC3 Mini 3 HP AC Drive

Repair

Repair Price: $ 880.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/105131/image_1920?unique=702a96a
  • Condition

Purchase Price: $ 0.00 $ 0.00 880.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 69780
Product Overview: A compact 3 HP AC motor drive (variable frequency drive) that controls the speed and torque of three-phase AC induction motors by varying output frequency and voltage. Used in pumps, fans, conveyors, and general industrial machinery requiring adjustable motor speed control.
Category: AC Motor Controls
Manufacturer: Idm Controls
Manufacturer Part Number: CIMR-PCU22P2
Also Known As(AKA): YASKAWA

Common Failures

Our technicians have identified that low-value electrolytic capacitors can leak onto the circuit board, leading to shorts and open resistors. This leakage often causes corrosion on the circuit board. Additional common issues include shorted and burned op-amps, open resistors, shorted power modules, and corrosion under connectors resulting in intermittent undervoltage faults.

Repair Approach

To address these issues, our technicians replace electrolytic capacitors and open resistors with new components as needed. This may include shorted op-amps, power modules, and damaged connectors. The circuit board is cleaned to remove leakage and corrosion where present.

Testing & Quality

Repaired products undergo testing to verify output and basic parameters. Testing is conducted over an extended period to confirm performance.

Service and repair your broken Idm Controls part


We can repair your Idm Controls model CIMR-PCU22P2 in our facility. Let our skilled technicians get your Idm Controls back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
