Ilco/Dart C-500 DC Motor

Repair

Repair Price: $ 368.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/60416/image_1920?unique=2a0d44a
  • Condition

Purchase Price: $ 0.00 $ 0.00 368.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 41705

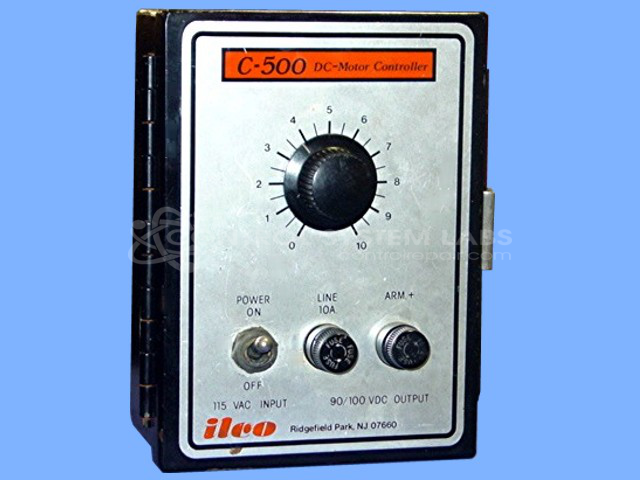

Product Overview: A variable-speed DC motor control (speed controller) for regulating the speed of permanent-magnet and shunt-wound DC motors. Features an integrated ON/OFF switch and fused input, supporting 90V DC motor output. Used in conveyors, pumps, mixers, and general industrial drive applications.
Category: DC Motor Controls
Manufacturer: Ilco/Dart
Manufacturer Part Number: C-500
Also Known As(AKA): DART

Common Failures

Common failures have included damaged or open capacitors, damaged switch seals, shorted diodes, shorted ON/OFF switches, fuse holder issues, and cracked solder joints.

Repair Approach

The typical repair process involves replacing failed components such as capacitors, diodes, and switches. Damaged traces are repaired, and compromised solder joints are resoldered. Once component replacements and repairs are complete, the unit undergoes thorough cleaning.

Testing & Quality

After completing repairs, the unit is tested to verify component functionality and voltage levels to ensure it operates as expected.

Service and repair your broken Ilco/Dart part


We can repair your Ilco/Dart model C-500 in our facility. Let our skilled technicians get your Ilco/Dart back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
