Repair
Repair Price: $ 188.00
Purchase
CSL Part Number: 81105

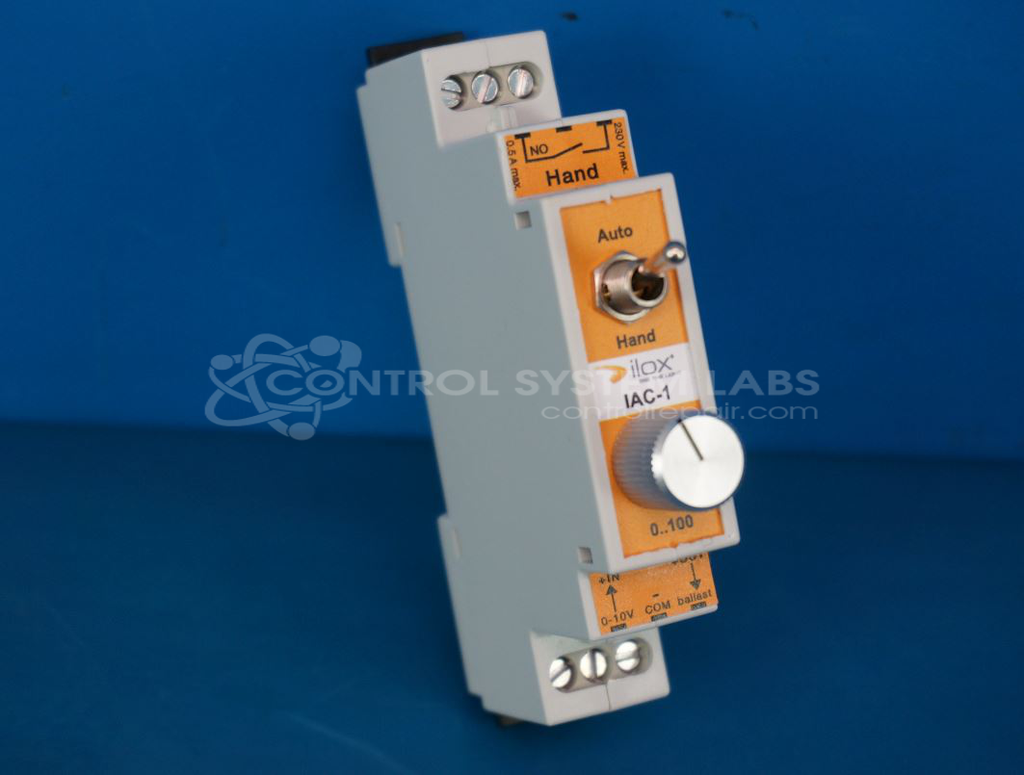

Product Overview: An analog converter board that scales 0-10 volt analog control signals, functioning as a current amplifier. It features a Hand/Auto switch for manual override of the output. Commonly used for dimming and lighting control in poultry farm environments.
Category: Analog Board
Manufacturer: iLOX
Manufacturer Part Number: IAC-1
Common Failures
Units evaluated have shown issues related to components such as the 12V zener diode and transistors. Observed problems have included zener diodes out of specification or shorted, as well as shorted transistors. Some units have also exhibited missing or damaged traces contributing to operational issues such as failure to dim.
Repair Approach
Repairs typically involve replacement of faulty 12V zener diodes and transistors. When present, missing or damaged traces are repaired. Following component replacement or repair, calibration is performed with settings adjusted as needed. Additional steps may include internal component adjustments and application of protective coating.
Testing & Quality
After repairs are completed, testing is conducted to verify functionality. This includes testing the board and confirming that features such as analog converters are operating correctly. Calibration steps verify that output specifications are met and that operational issues have been addressed.
Service and repair your broken iLOX part
We can repair your iLOX model IAC-1 in our facility. Let our skilled technicians get your iLOX back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
