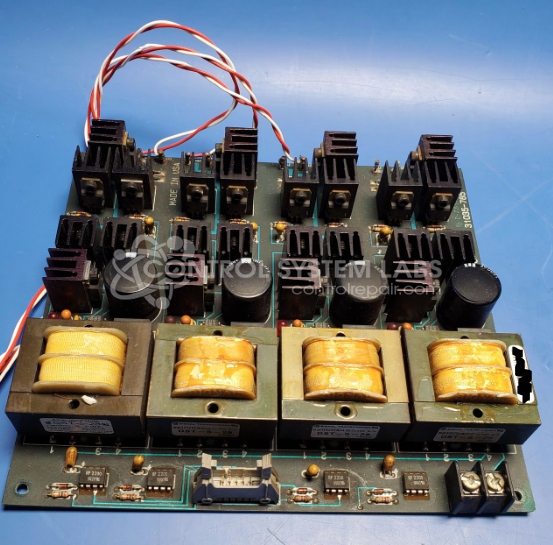

Inductoheat 31035-785 Gate Driver Board
Repair
Repair Price: $ 724.00
Purchase
CSL Part Number: 103401
Product Overview: The Inductoheat 31035-785 gate driver board is a multi-channel control board that provides isolated gate drive signals for power switching devices in induction heating systems. It accepts AC input (115V/230V) and produces regulated 15VDC outputs that toggle based on input control signals. The board features multiple independent channels, each with power transformers, optocouplers for isolation, MOSFET drivers (TC426), and output transistors (IRF520/IRF9520) to drive IGBTs or similar power devices. Common in Inductoheat equipment, it converts low-level logic signals into high-current gate drive outputs with proper voltage levels and isolation.
Category: Control Board
Manufacturer: Inductoheat
Manufacturer Part Number: 31035-785
Limited Repair
The Inductoheat part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Inductoheat part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
