CSL Part Number: 106249

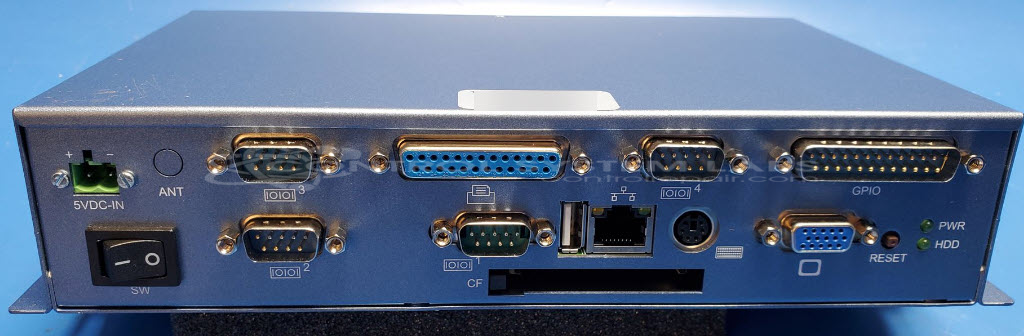

Product Overview: The Industrial Automation DX86-800-S1 is an 800 MHz embedded industrial computer designed for automation and control applications. It features multiple COM ports (including COM3 and COM4 with configurable IRQ settings), RS-232 serial communication capability, and CMOS battery-backed BIOS configuration. This SBS (Single Board Computer) form factor unit is commonly used in manufacturing control systems, process automation equipment, and industrial PC-based controllers where reliable serial communication and real-time data processing are required.
Category: Computer Items
Manufacturer: Industrial Automation (IA)
Manufacturer Part Number: DX86-800-S1
Please send any wiring diagrams and software you are using this with.
Common Failures
Common issues include communication problems with external systems. Reported causes have included CMOS battery concerns and communication setting malfunctions.
Repair Approach
Repair work may involve component replacement, such as RS-232 transceivers, and verification of BIOS settings to support proper communication. Adjustments to COM port settings and jumper configurations are evaluated as needed to restore functionality.
Testing & Quality
After component replacement and adjustments, units undergo testing, which may include bench-powered analysis of the serial data stream and extended burn-in testing to verify reliability and correct operation. These steps support quality standards before units are returned.
Limited Repair
The Industrial Automation (IA) part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Industrial Automation (IA) part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
