Repair
Repair Price: $ 1,876.00
Purchase
CSL Part Number: 84996

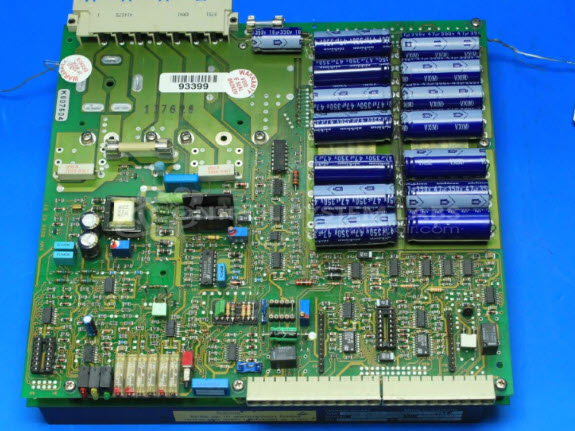

Product Overview: The Infranor SMVE 2410 SMD+OS 10 is a 240VAC, 10-amp servo controller used for precision motion control in industrial automation systems. It regulates servo motor speed, torque, and position through closed-loop feedback control. The unit operates with servo motors equipped with tachometer feedback and features a two-board architecture with separate control and drive sections. Common applications include CNC machinery, automated production equipment, and robotics where accurate motor control is essential. The controller uses MOSFET and bipolar transistor output stages with a switching frequency around 17.5kHz for motor drive.
Category: Servo Controls
Manufacturer: Infranor
Alternate Manufacturer Names: MESA AUTOMATION
Manufacturer Part Number: SMVE 2410 SMD+OS 10
Other Synonyms: MESA AUTOMATION
Common Failures
This product has experienced overcurrent faults primarily due to defective components, including output transistors, MOSFETs, and capacitors. These defects often result in overheating of components and issues with power supply voltages, leading to blown fuses when boards are connected.
Repair Approach
Repair efforts involved the replacement of faulty transistors and capacitors. Missing fuses were also replaced. Despite thorough inspections and component replacements, the unit was determined to be Beyond Economic Repair due to persistent overheating and low supply voltages when boards are interconnected.
Testing & Quality
Extensive testing revealed that the product operates correctly when control and drive boards are separated, with voltages returning to normal levels. However, integration of the boards leads to increased power load and continued failures during burn-in tests, resulting in blown fuses and insufficient voltage supply.
Service and repair your broken Infranor part
We can repair your Infranor model SMVE 2410 SMD+OS 10 in our facility. Let our skilled technicians get your Infranor back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
