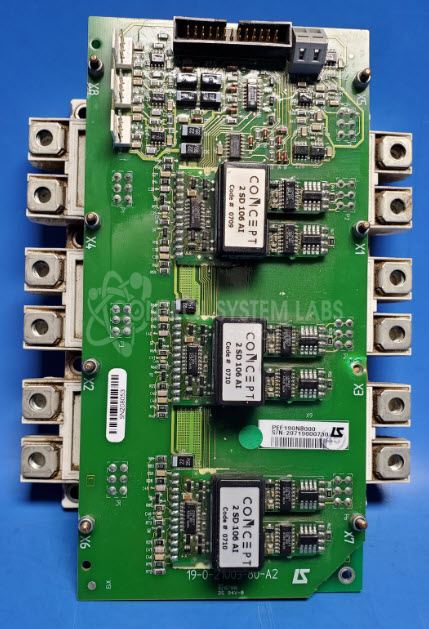

Ingersoll Rand 23036668 Nirvana HPM Compressor 100T Power Module
Repair
Repair Price: $ 6,990.00
Purchase
CSL Part Number: 84043
Product Overview: The Nirvana HPM Compressor 100T Power Module, manufactured by Ingersoll Rand with part number 23036668, is a key component in the Ingersoll Rand Nirvana Compressor Drive series. It serves as a power control module, commonly used in industrial air compressor applications to drive high-power motors efficiently. It operates within a technical group specific to the 100T series, providing precise control and energy optimization in demanding environments.
Category: Power Controls
Manufacturer: Ingersoll Rand
Manufacturer Synonyms: Ingersoll-Rand Company
Alternate Manufacturer Names: OUTPUT POWER 100T MODULE
Manufacturer Part Number: 23036668
Series: Ingersoll Rand Nirvana Compressor Drive
Other Synonyms: OUTPUT POWER 100T MODULE
Common Failures
Common issues include a blown 1.5A fuse and capacitors in the power supply showing high Equivalent Series Resistance (ESR). These issues have been identified during evaluation. The fuse failure can affect the +15V rail, while compromised capacitors can impact power module performance.
Repair Approach
Repairs typically involve replacing defective components, such as fuses and capacitors, to restore proper function. Preventative replacements of additional board capacitors may also be conducted to enhance board reliability.
Testing & Quality
Diagnostic testing is performed to assess each section of the module using specialized equipment. Modules are tested as thoroughly as possible before being returned. Final testing is completed with the customer's control unit.
Service and repair your broken Ingersoll Rand part
We can repair your Ingersoll Rand model 23036668 in our facility. Let our skilled technicians get your Ingersoll Rand back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
