CSL Part Number: 116319

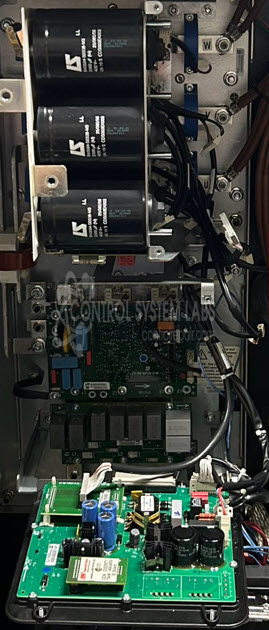

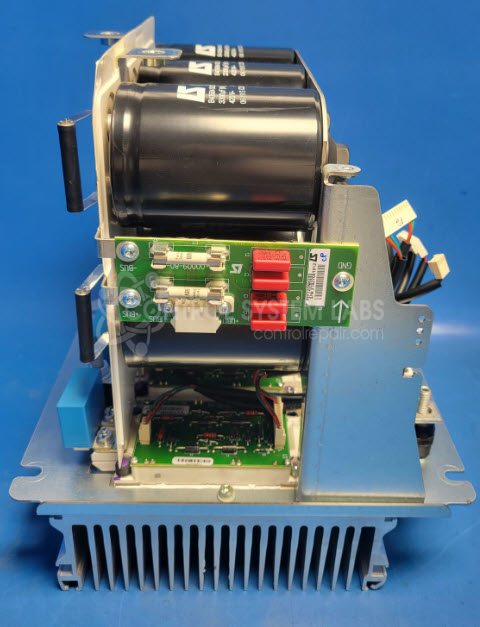

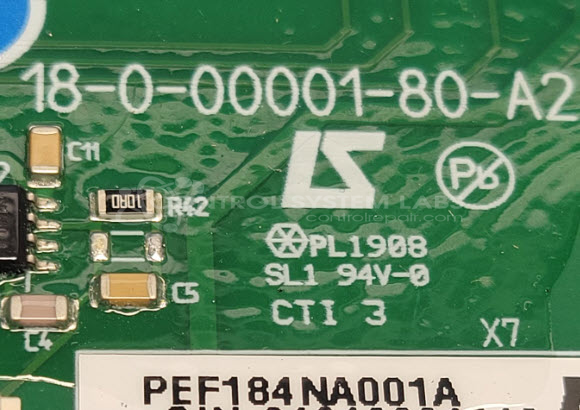

Product Overview: The Compressor 100hp VFD is a variable frequency drive designed specifically for Ingersoll Rand R75N-A rotary screw air compressors. It controls motor speed and optimizes compressor performance by regulating power delivery to the 100 horsepower motor. This drive manages compressor operation in industrial compressed air systems, providing energy efficiency and precise pressure control. The unit includes a Leroy Somer output module control board and operates in demanding manufacturing, processing, and facility air supply applications.
Category: AC Motor Controls
Manufacturer: Ingersoll Rand
Manufacturer Synonyms: Ingersoll-Rand Company
Alternate Manufacturer Names: Ingersoll Rand
Manufacturer Part Number: 23459803
Also Known As(AKA): R75N-A Compressor VFD
Other Synonyms: Ingersoll Rand
We prefer for proper testing that you send in entire drive for repair, not just parts of it.
Common Failures
This product may experience issues with the control board not powering on despite receiving power. Observed causes can include a shorted capacitor or an open surface mount fuse.
Repair Approach
The repair process involves identifying and replacing defective components, such as shorted capacitors and fuses. Technicians utilize current-limited power supplies and thermal cameras to locate shorts effectively. Replaced components are then coated with conformal material.
Testing & Quality
Post-repair testing includes functional checks to verify operation. Due to the inability to simulate the complete compressor system, testing is limited to power-up verification with available components. Repairs are warranted per CSL policy on the work performed and replaced parts.
Service and repair your broken Ingersoll Rand part
We can repair your Ingersoll Rand model 23459803 in our facility. Let our skilled technicians get your Ingersoll Rand back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
