Repair
Repair Price: $ 1,920.00
Purchase
CSL Part Number: 22027

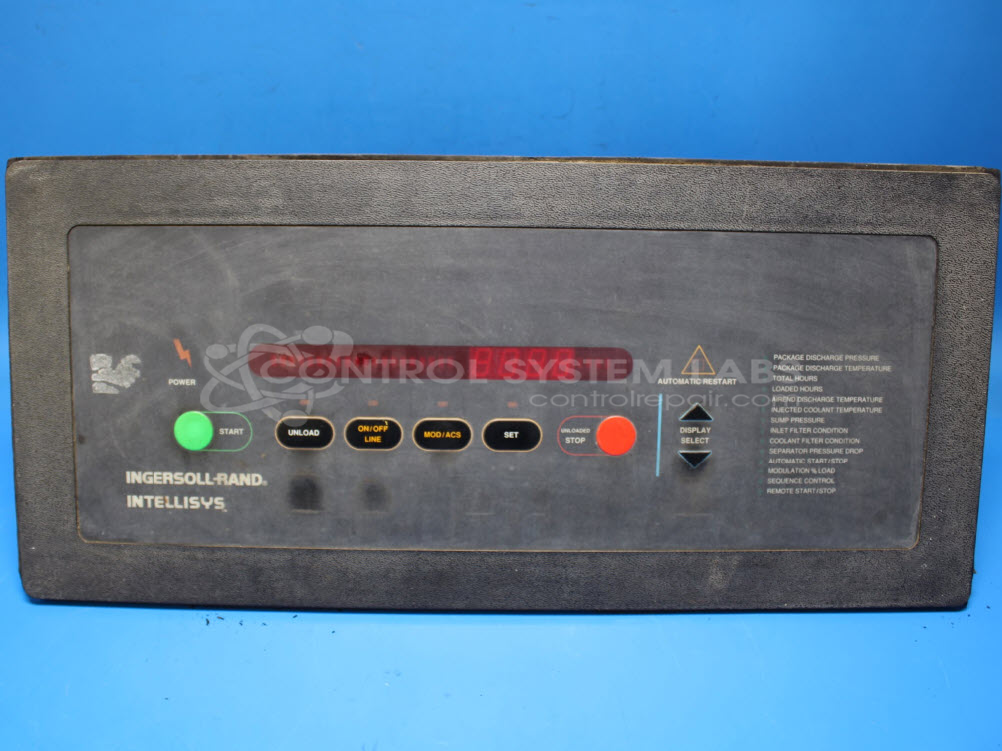

Product Overview: The Intellisys Data Plate Control Kit is an operator interface panel for Ingersoll Rand Intellisys-series rotary screw air compressors, typically used on machines rated 50-450 horsepower. It provides system monitoring, compressor start/stop control, and parameter adjustment through an LED-backlit display and membrane keypad. The control manages compressor operation, displays run status, and communicates with the main compressor controller. This kit includes the main control board and data plate assembly; keypad replacement is sold separately and may be required for full functionality.
Category: Operator Interface
Manufacturer: Ingersoll Rand
Manufacturer Synonyms: Ingersoll-Rand Company
Manufacturer Part Number: 39195649
Series: Intellisys Compressor Control
Also Known As(AKA): 39225644
Common Failures
Common issues reported include the LED illuminated HMI not lighting up, the unit running for 10 to 30 minutes before defaulting to 'ready to start', and USB drive issues. Defective components such as voltage regulators, diodes, and keypads have been identified as causes.
Repair Approach
Repairs may involve replacing defective components such as voltage regulator ICs and diodes. Additional work can include component relocation for improved heat dissipation and installation of pull-up resistors for enhanced performance. Keypad modifications may also be performed to resolve certain issues.
Testing & Quality
Units are evaluated through diagnostic testing, including internal component inspection and burn-in tests. After repair work is completed, units are tested on fixtures to verify continuous operation. Final testing is performed to confirm that identified issues have been resolved before the unit is returned.
Service and repair your broken Ingersoll Rand part
We can repair your Ingersoll Rand model 39195649 in our facility. Let our skilled technicians get your Ingersoll Rand back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
