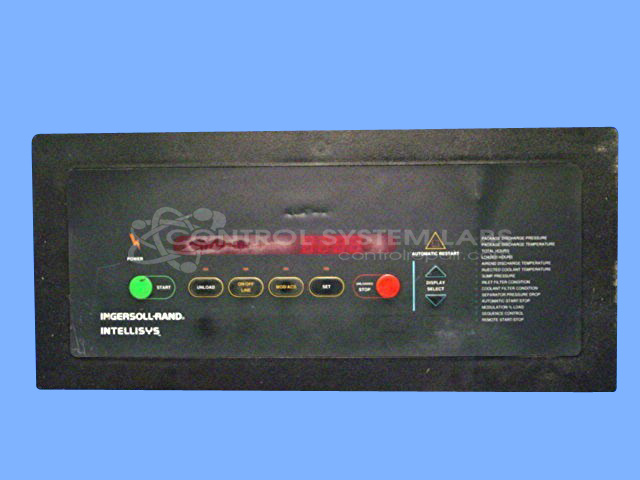

Ingersoll Rand 39797428 50-450HP Intellisys Control Data Plate

Repair

Repair Price: $ 2,016.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/48894/image_1920?unique=7e02a10
  • Condition

Purchase Price: $ 0.00 $ 0.00 2016.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 30074
Product Overview: An operator interface control board with integrated display and keypad for industrial rotary screw air compressors rated 50-450 HP. It manages compressor monitoring, start/stop sequencing, and contactor control, providing regulated low-voltage DC supply for onboard electronics and operator readouts.
Category: Operator Interface
Manufacturer: Ingersoll Rand
Manufacturer Synonyms: Ingersoll-Rand Company
Manufacturer Part Number: 39797428
Series: Intellisys Compressor Control

Common Failures

Common issues reported include display failures, intermittent operation with startup delays, and overheating of components. These symptoms may indicate problems with the power supply, particularly with the 5V DC regulator and associated components.

Repair Approach

Repairs may involve replacing the 5V DC regulator and capacitors, improving thermal conduction, resoldering connections, and ensuring components are isolated from chassis ground to prevent shorting. Modifications such as mounting components on back plates may be employed to enhance heat dissipation.

Testing & Quality

Post-repair, units undergo thorough testing with extended runtime evaluations to ensure reliable operation. Testing procedures are designed to verify resolution of the reported issues.

Service and repair your broken Ingersoll Rand part


We can repair your Ingersoll Rand model 39797428 in our facility. Let our skilled technicians get your Ingersoll Rand back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
