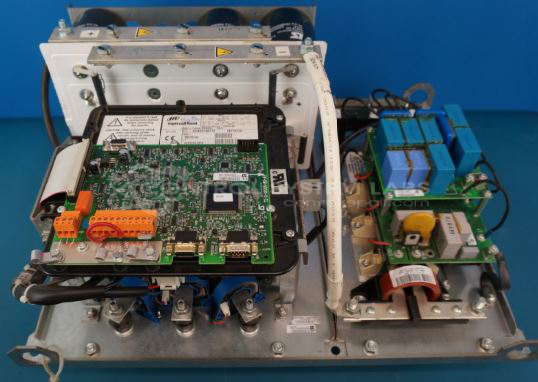

Ingersoll Rand CCN22156772 Compressor AC Motor Drive

Repair

Call for price

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/100738/image_1920?unique=644fad7
  • Condition

Purchase Price: $ 0.00 $ 0.00 0.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 80390
Category: AC Motor Controls
Manufacturer: Ingersoll Rand
Manufacturer Synonyms: Ingersoll-Rand Company
Manufacturer Part Number: CCN22156772
Also Known As(AKA): MD75TIR

An AC motor drive operating of of 380-480 Vac 50-60 Hz, drawing 104-90 Amps, r

Common Failures

One of the main issues reported with this product is the appearance of a Fault 39 error code. During evaluation, reversed current feedback cables and issues within the thermal oscillator circuit were identified as potential factors.

Repair Approach

The repair involved correcting the current feedback connections and replacing specific capacitors related to the oscillator circuit. These steps addressed the reported error.

Testing & Quality

After completing the repair, communication was verified with the customer's SGNE equipment. Further testing was limited by the availability of additional components.

Service and repair your broken Ingersoll Rand part


We can repair your Ingersoll Rand model CCN22156772 in our facility. Let our skilled technicians get your Ingersoll Rand back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
