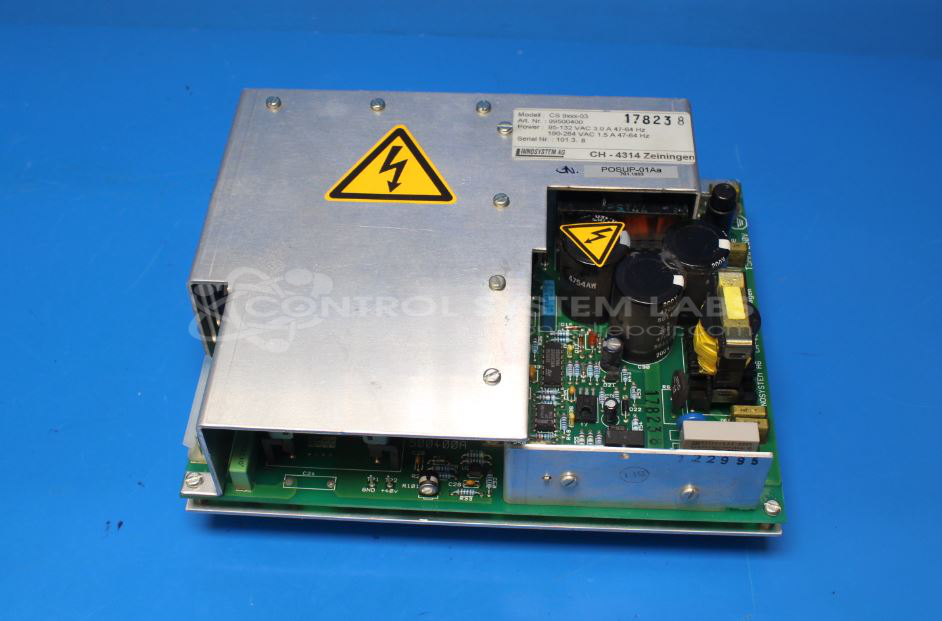

Innosystem Ag CS9XXX-03 Robotic Power Supply 5V / 24V / 40V
Repair
Repair Price: $ 1,352.00
Purchase
CSL Part Number: 26515
Product Overview: A switch-mode power supply delivering three regulated DC outputs of 5V, 24V, and 40V, operating from 120/240 VAC input. Designed for robotic and automation systems in paper industry equipment, it provides logic, control, and motor-level power through a multi-rail configuration.
Category: Power Supply
Manufacturer: Innosystem Ag
Manufacturer Part Number: CS9XXX-03
Also Known As(AKA): CS5-200
Power supplies are tested with a minimum 4-hour burn-in, under load.
Common Failures
This product has been observed to experience electrical issues, including short circuits and voltage ripple. Another observed issue is the absence of 40V output, which can affect unit performance.
Repair Approach
When short circuit issues are identified, the faulty component is replaced. Voltage ripple issues may be addressed by replacing low voltage electrolytic capacitors. In cases where 40V output is absent, specific components such as MOSFETs and switching diodes may be replaced to restore functionality.
Testing & Quality
Repaired units are tested to verify proper operation. Testing may include load testing and extended run time to confirm repair effectiveness. Additional testing procedures are applied as appropriate to identify any further issues before the unit is returned.
Service and repair your broken Innosystem Ag part
We can repair your Innosystem Ag model CS9XXX-03 in our facility. Let our skilled technicians get your Innosystem Ag back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
