Repair Price: $ 1,252.00
Purchase
CSL Part Number: 68131

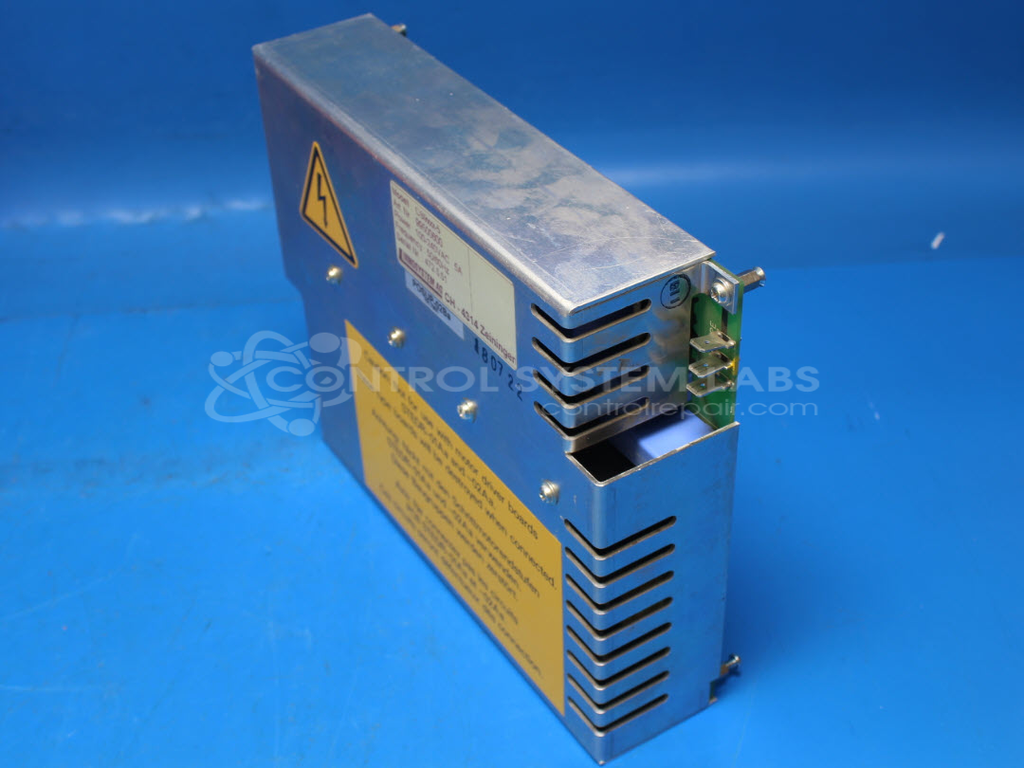

Product Overview: The Innosystem Ag CS9XXX-05 is a multi-output switching power supply delivering regulated 5V, 24V, and 40V DC rails. It uses PWM controllers (TL594, UC3854B, SG3525A) and high-side gate drivers (IR2125, IR2110) to manage power conversion stages. Common in industrial robotic systems and automated machinery requiring multiple voltage levels, it features electrolytic bulk capacitors, N-channel MOSFETs for switching, and zener-regulated feedback circuits. The design includes independent secondary-side regulation for each output rail.
Category: Power Supply
Manufacturer: Innosystem Ag
Manufacturer Part Number: CS9XXX-05
Power supplies are tested with a minimum 4-hour burn-in, under load.
Common Failures
Units received for evaluation often exhibit issues within the power supply system. Common findings include failed diodes, damaged MOSFETs, and faulty gate driver or PWM controller ICs. Capacitors may also require replacement during repair.
Repair Approach
Repairs typically involve replacing defective components such as diodes, MOSFETs, and ICs identified during evaluation. Preventative measures may include replacing aging electrolytic and tantalum capacitors and adding sockets to support future serviceability.
Testing & Quality
Diagnostic testing is performed to identify voltage irregularities and circuit issues. After repair, units undergo testing to verify correct output voltages (5V, 24V, and 50V). Additional testing, including burn-in procedures, is conducted as appropriate. If a unit does not pass validation, further component replacement and testing may be required.
Service and repair your broken Innosystem Ag part
We can repair your Innosystem Ag model CS9XXX-05 in our facility. Let our skilled technicians get your Innosystem Ag back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
