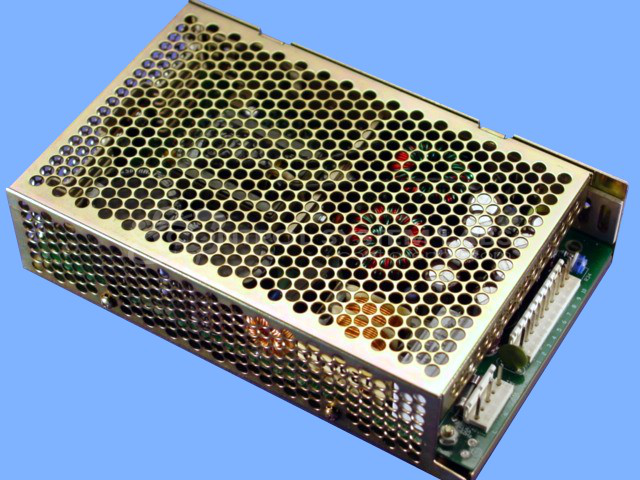

Integrated Power Designs SRW-115-4005 Quad Voltage Output Power Supply 115W
Repair
Repair Price: $ 428.00
Purchase
CSL Part Number: 13921
Product Overview: An AC-DC switching power supply providing four regulated DC outputs with 115W total output power. It converts AC line input to stable low-voltage DC, including an adjustable 5V rail, for powering industrial control systems, instrumentation, and embedded electronic equipment.
Category: Power Supply
Manufacturer: Integrated Power Designs
Manufacturer Synonyms: IPD
Manufacturer Part Number: SRW-115-4005
Series: SRW-115 Series AC-DC
Power supplies are tested with a minimum 4-hour burn-in, under load.
Common Failures
The primary issues reported with this product include failures of diodes and problems related to voltage control. Specifically, diodes have been noted to short, and there have been instances where there was no control over the 5V output.
Repair Approach
Repairs may involve replacing faulty diodes, transistors, and capacitors, alongside re-soldering components as needed. For voltage issues, adjustments to relevant resistors may be implemented. Preventative measures, such as replacing capacitors and other wear-prone components, may also be performed to support long-term stability.
Testing & Quality
After repairs, testing is conducted, which may include running the unit under load conditions and extended burn-in periods to evaluate reliability and proper operation. Diagnostics are performed to confirm the effectiveness of each repair before returning the product to service.
Service and repair your broken Integrated Power Designs part
We can repair your Integrated Power Designs model SRW-115-4005 in our facility. Let our skilled technicians get your Integrated Power Designs back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
