CSL Part Number: 119532

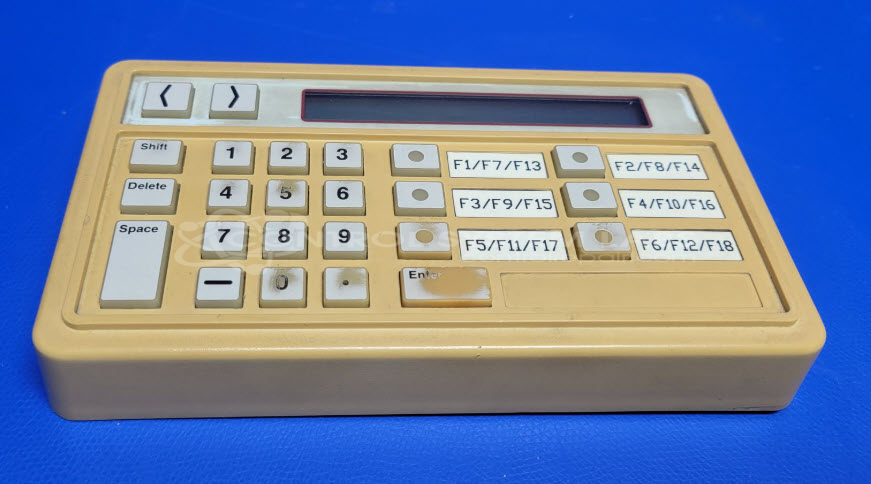

Product Overview: The CTM250B-00 is an operator interface control panel manufactured by Intelligent Instrumentation, functioning as a dumb terminal with RS-232 communications. It features a membrane keypad with numeric and function keys, an integrated display screen, and operates on a low-voltage DC input (approximately 7Vdc). The keypad uses a two-layer design with rubber button contacts and a thin conductive lower layer connected via fine-pitch flex cable. This interface is typically used in industrial automation systems requiring simple data entry and display feedback for machine control or process monitoring applications.
Category: Operator Interface
Manufacturer: Intelligent Instrumentation

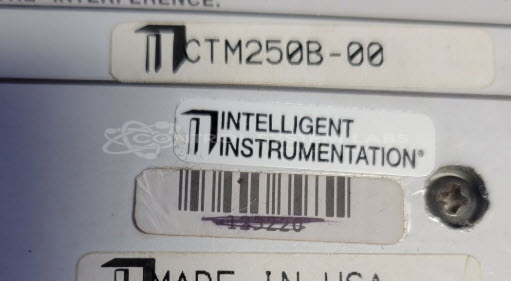

Manufacturer Part Number: CTM250B-00
Please include wiring diagrams for what this goes to.
Limited Repair
The Intelligent Instrumentation part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Intelligent Instrumentation part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
