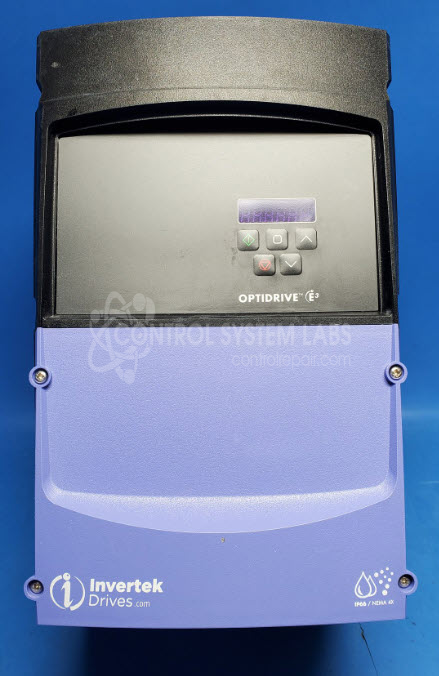

Invertek Drives ODE-3-440300-3F4A OPTIDRIVE E3 Inverter, 380-480 VAC 25.6 A 3 Phase In, 0-500 VAC 30 A 3 Phase Out
Repair
Repair Price: $ 1,394.00
Purchase
CSL Part Number: 111376
Product Overview: The OPTIDRIVE E3 is a variable frequency drive (VFD) manufactured by Invertek Drives for controlling three-phase AC motors. It accepts 380-480 VAC three-phase input at 25.6 A and delivers 0-500 VAC three-phase output at 30 A, providing approximately 15 kW (20 HP) of motor control. This inverter features digital inputs for speed control, a front-mounted keypad with navigation controls, and NEMA 4X enclosure rating for harsh environments. Common applications include industrial pumps, fans, conveyors, and process equipment requiring variable speed control. The drive supports parameter programming for customized motor operation and can be configured for various control modes.
Category: AC Motor Controls
Manufacturer: Invertek Drives
Manufacturer Part Number: ODE-3-440300-3F4A
Series: OPTIDRIVE E3
Brand: OPTIDRIVE E3
Please include clear problem description, wiring diagram as to how connected in the system, and clear pics/info on the motor, encoder, or feedback used with the drive.
Common Failures
Common issues reported include the device not changing speeds and certain keypad keys not responding. Intermittent operation has been traced to loose ribbon connectors at the front display board. Problems with keypad diodes have also been identified as affecting unit operation.
Repair Approach
Repair processes may involve replacing defective diodes associated with the keypad, reseating the ribbon connector, and resetting the unit to customer-provided parameters. When needed, adjustments are made to ensure proper operation. Conformal coating may be removed to facilitate diagnostics. Units are tested to verify that all keypad buttons work correctly after repairs.
Testing & Quality
Each repaired unit undergoes comprehensive testing, including burn-in tests with a motor, to verify reliable performance. All outputs and inputs are verified, and rigorous testing is conducted to confirm compatibility and functionality. Units pass multiple levels of testing before being returned to customers.
Service and repair your broken Invertek Drives part
We can repair your Invertek Drives model ODE-3-440300-3F4A in our facility. Let our skilled technicians get your Invertek Drives back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
