CSL Part Number: 58224

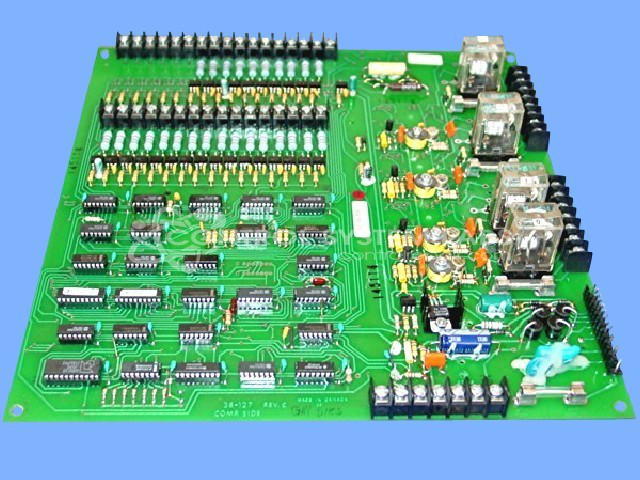

Product Overview: The PC-100 Punch Press Main Control Board is a machine control circuit board manufactured by ISB Technologies for punch press applications in paper processing equipment. It manages primary control functions including relay-driven outputs, input monitoring via barrier strips, and LED status indication. The board features multiple DC relays, pulse transformers, power resistors, and programmed EPROM memory for sequence control. It interfaces with safety systems such as light curtains and provides coordinated timing for punch press operations.
Category: Machine Control
Manufacturer: ISB Technologies
Manufacturer Part Number: 53-384C
Also Known As(AKA): 38-127
Common Failures
Common issues observed in these units include indicator light failures, defective relays, burned resistors, and open capacitors, which can lead to operational problems.
Repair Approach
The repair process involves diagnostic testing to verify reported issues, followed by replacement of defective components such as relays, capacitors, and LEDs as needed. Poor connections on input barrier strips and resistors are repaired when identified. In some cases, certain capacitors may be replaced as a preventive measure. PROM data is saved as a backup when applicable, and circuit components are repaired to restore proper functionality.
Testing & Quality
Following repair, units undergo comprehensive testing, including diagnostic checks and verification that controls are operational. Extensive burn-in testing is performed to confirm reliability before units are returned.
Service and repair your broken ISB Technologies part
We can repair your ISB Technologies model 53-384C in our facility. Let our skilled technicians get your ISB Technologies back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
