Repair
Repair Price: $ 1,994.00
Purchase
CSL Part Number: 86758

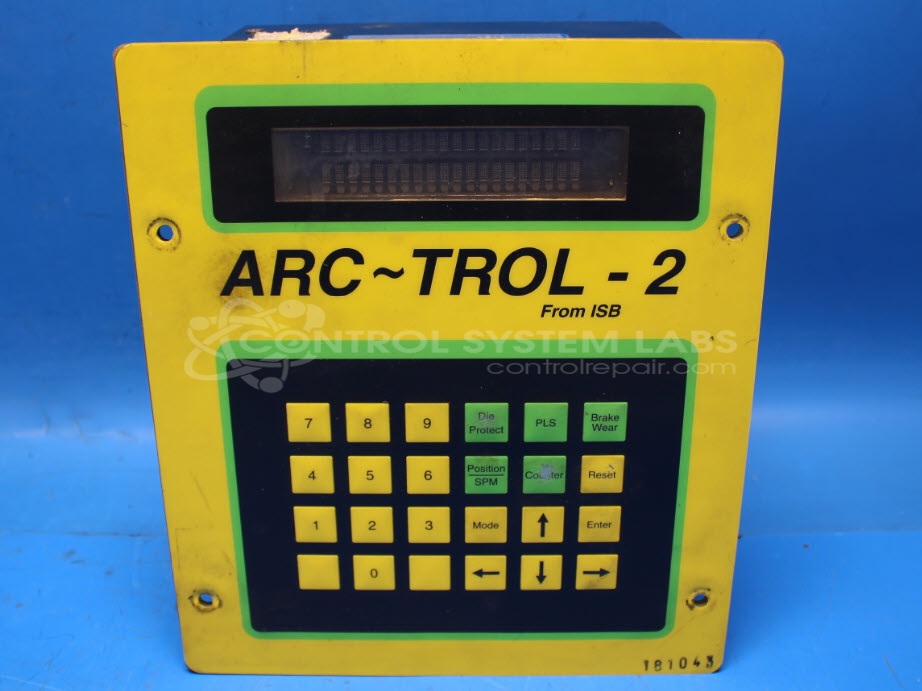

Product Overview: The Arc-Trol-2 is a die protection system controller manufactured by ISB Technologies (also known as Autotech M1200). It monitors mechanical press operations to prevent die damage by tracking resolver position feedback and controlling safety relay outputs that latch die protection sensors. The system features a membrane keypad interface with digital display showing press speed (SPM) and fault status for buckle sensors. It interfaces with resolvers like the Autotech RL-100 and manages multiple relay-driven safety interlocks (K8-K12) tied to sensor inputs for real-time die protection in metal stamping and forming presses.
Category: Control Assembly
Manufacturer: ISB Technologies
Alternate Manufacturer Names: Autotech M1200
Manufacturer Part Number: 56-766-000 Arctrol
Series: ARC-TROL Die Protection System Control
Also Known As(AKA): SAC-M1206-ISB
Other Synonyms: Autotech M1200
Common Failures
Common issues with this product include intermittent or recurring errors such as random numbers on the control display, shutdowns after several passes, and unlatching relays. Specific problems reported include faults in sensor input, noisy connections between power boards, defective relays, and intermittent display faults.
Repair Approach
Repairs may involve cleaning and securing connections, such as applying DeoxIT to connectors, replacing defective capacitors and relays, and resoldering sockets. For cases related to faulty display outputs, replacements might include components on the control or display board. Issues related to relays sticking or not latching properly may require component replacement and realignment of socket pins.
Testing & Quality
After repairs, products undergo diagnostic testing, including turning on the unit to check displays and verifying component functionality with test connectors. Burn-in tests are conducted with connected motors to ensure stable operation. Final testing includes using tools like the Huntron to validate relay functions and monitoring for improved operation stability.
Service and repair your broken ISB Technologies part
We can repair your ISB Technologies model 56-766-000 Arctrol in our facility. Let our skilled technicians get your ISB Technologies back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
