CSL Part Number: 80805

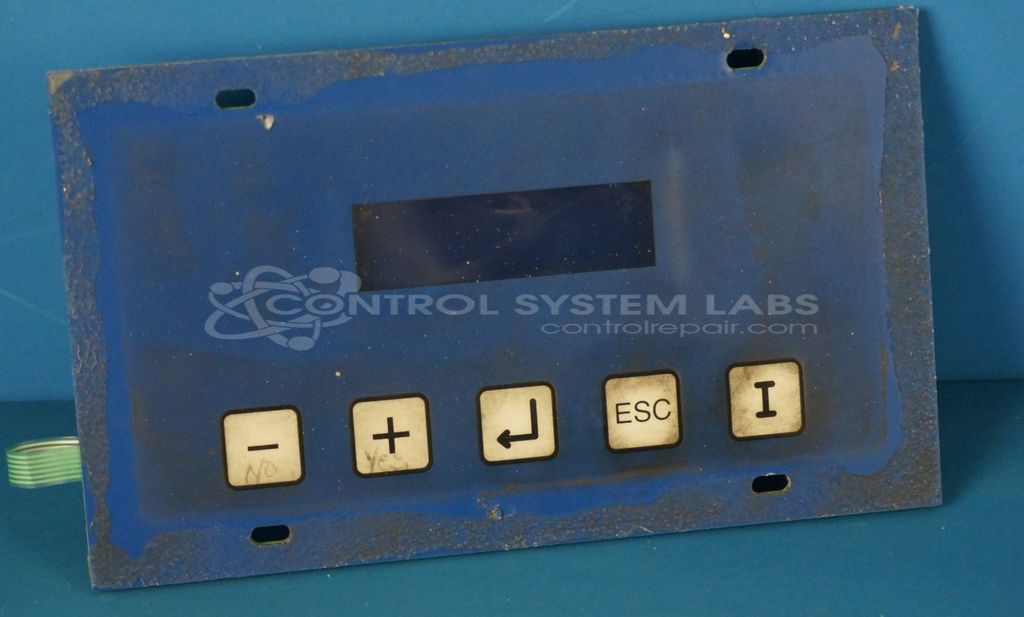

Product Overview: The Shrinkin Induction Heating Unit Display Panel with Control Board (ISCAR E229342 with E243002) is an operator interface and control module for ISCAR's shrink-fit induction heating systems. These systems heat tool holders to expand them for precision tool insertion and are commonly used with carbide and HSS cutting tools in machining applications. The assembly integrates a display screen, membrane keypad, and control circuitry to manage heating cycles and system parameters. Replacement keypads are available as separate components for maintenance purposes.
Category: Operator & Control Panels
Manufacturer: ISCAR
Manufacturer Part Number: E229342 with E243002
Series: Shrinkin Induction Heater
Common Failures
Typical issues with this unit include the display not functioning and the inability to proceed past certain menu options due to non-responsive buttons. These problems are often caused by corrosion damage to the control board, particularly affecting the ribbon cable and traces around the display connector.
Repair Approach
Repairs may involve cleaning and restoring corroded areas on the circuit board, bypassing damaged traces, and repairing broken connections. In some cases, replacement of certain components such as SMD resistors or the display may be necessary. Each unit is evaluated individually, and a quotation is provided before any repair work begins.
Testing & Quality
Post-repair quality checks include verifying that the unit powers on correctly and that buttons are functional. Repaired units are tested to confirm that identified issues have been addressed and that the unit operates properly.
Limited Repair
The ISCAR part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your ISCAR part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
