Repair
Repair Price: $ 1,164.00
Purchase
CSL Part Number: 80624

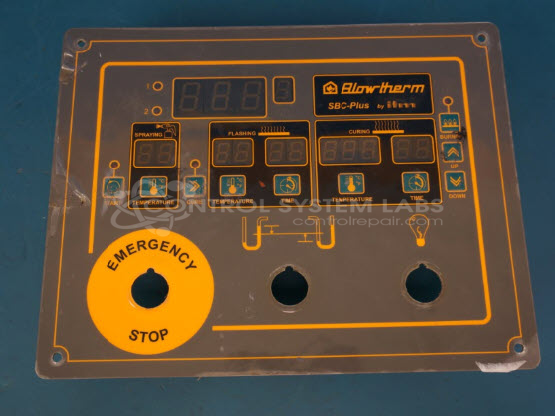

Product Overview: The SBC Master (SBC-M Plus) is an operator interface panel for Blowtherm paint booth control systems, manufactured by Italmec Elettronica. It provides temperature monitoring via a digital LED display and tactile button controls for setting parameters such as spraying, flashing, and curing temperatures and cycle times. The panel communicates with a companion SBC Slave controller module over a serial interface to manage paint booth heating and ventilation cycles. Commonly used in automotive refinishing and industrial coating applications, it operates on 12-24VAC/DC power and features front-panel membrane switches with underlying tactile contacts for cycle control and temperature adjustment.
Category: Operator & Control Panels
Manufacturer: Italmec Elettronica
Manufacturer Synonyms: ITM
Alternate Manufacturer Names: Blowtherm
Manufacturer Part Number: SBC-M Plus
Other Synonyms: Blowtherm
Please include control panel when sending in this unit. See code 80625. Overlay replacement is quoted as additional costs, We recommend you record stored parameters before powering down as we can not supply or reload them.
Common Failures
This product has been reported to experience various issues, primarily related to temperature readouts, power cycling, and button operation. Common symptoms include temperature display anomalies, such as displaying error codes or requiring manual intervention to stabilize, as well as the unit shutting off when certain buttons are engaged. These issues may lead to the unit requiring a reset.
Repair Approach
Repairs typically involve replacing defective components, such as electrolytic capacitors and tactile switches, which have been identified as common failure points. Preventative replacement of components may be performed to address known wear items. Diagnostic testing tools are used to evaluate wiring and connections when needed. In some instances, the unit must be connected to external systems for comprehensive testing.
Testing & Quality
Diagnostic testing is conducted following repairs, including functional tests and extended run tests to evaluate stability. Components such as LEDs and buttons are verified to be operational. Units undergo testing to confirm that all functions are working correctly and that communications between interconnected components are functioning as expected.
Service and repair your broken Italmec Elettronica part
We can repair your Italmec Elettronica model SBC-M Plus in our facility. Let our skilled technicians get your Italmec Elettronica back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
