Repair
Repair Price: $ 848.00
Purchase
CSL Part Number: 80625

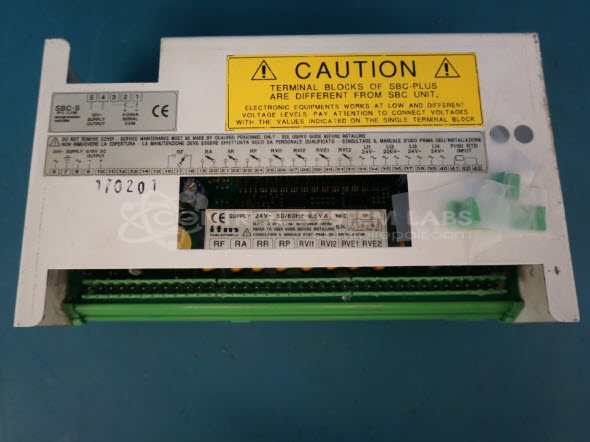

Product Overview: The SBC-S Plus is a slave control module manufactured by Italmec Elettronica for Blowtherm paint booth systems. It integrates power supply, I/O management, and relay control functions to operate exhaust fans, burners, and temperature regulation circuits within industrial paint finishing equipment. The module communicates with a master operator panel and controls multiple relay outputs for sequencing heating and ventilation operations. It features RTD-based temperature monitoring, multiple electrolytic capacitors for power filtering, optoisolators for signal protection, and Darlington driver arrays for relay activation. Common applications include automotive and industrial spray booth installations requiring precise environmental control.
Category: Operator Interface
Manufacturer: Italmec Elettronica
Manufacturer Synonyms: ITM
Alternate Manufacturer Names: Blowtherm
Manufacturer Part Number: SBC-S Plus
Other Synonyms: Blowtherm
Please include control panel when sending in this unit. See code 80624.
```html
Common Failures
Units have been evaluated for issues including relay or connection failures that prevent voltage from reaching certain circuits, affecting burner control circuit operation. Additional findings have included aged capacitors and defective components such as relays and opto-isolators.
Repair Approach
Repairs typically involve replacing defective or preventative components, particularly electrolytic capacitors and relays. In some cases, further diagnostic work is performed to identify and replace additional faulty components such as opto-isolators and driver arrays.
Testing & Quality
Each unit undergoes diagnostic testing and burn-in procedures to verify functionality following repair. These processes confirm component operation and overall unit integrity.
```Service and repair your broken Italmec Elettronica part
We can repair your Italmec Elettronica model SBC-S Plus in our facility. Let our skilled technicians get your Italmec Elettronica back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
