Repair
Repair Price: $ 748.00
Purchase
CSL Part Number: 20339

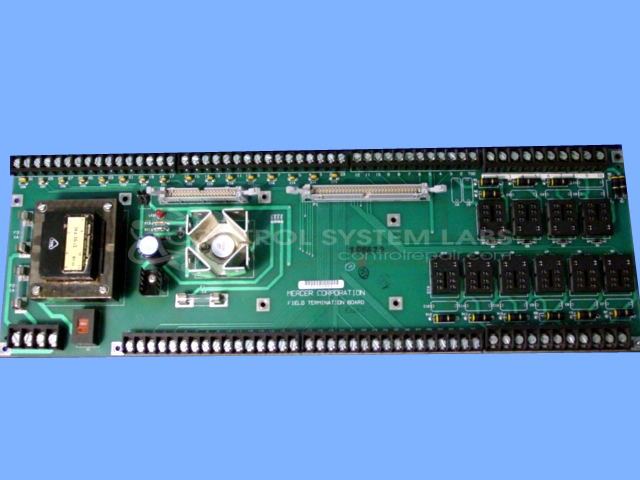

Category: Interconnect Panel
Manufacturer: Itw Dynatec
Manufacturer Part Number: 033X254
Also Known As(AKA): MERCER
Common Failures
Throughout the repair history of this product, common issues include blown traces, burned traces, and shorted inputs. These problems were often accompanied by missing relays or other hardware components such as screws and springs. Issues with components such as the sensor inputs and connectors were also reported. Additionally, components like the 2200uf capacitors were frequently replaced as preventive measures.
Repair Approach
The repair process typically involves repairing or rebuilding burnt or blown traces, often addressing input-related issues. Replacement of components like 2200uf capacitors and bridge rectifiers is a common measure, regularly paired with resoldering tasks. Missing hardware is also replaced as needed.
Testing & Quality
After repairs, extensive testing is conducted to ensure functionality. Verification of DC supplies, inputs, and outputs is standard, with burn-in tests lasting from several hours to a few days to confirm reliability.
Service and repair your broken Itw Dynatec part
We can repair your Itw Dynatec model 033X254 in our facility. Let our skilled technicians get your Itw Dynatec back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
