Repair
Repair Price: $ 1,350.00
Purchase
CSL Part Number: 87173

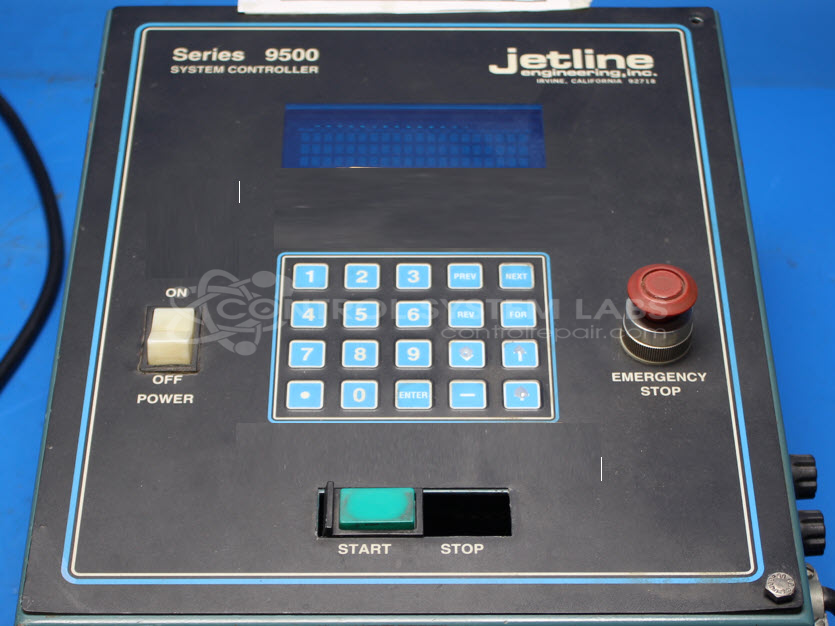

Product Overview: The Jetline Engineering 9500 is a 4-channel microcontroller-based system controller used in automated welding applications. It manages welding current control, arc voltage monitoring, travel speed, and auxiliary functions through programmable sequences. The unit features a membrane keypad interface, LCD display, and multi-channel analog/digital I/O for integration with welding power sources and positioning equipment. It includes non-volatile SRAM with battery backup for parameter and program storage, multiple serial communication ports, and isolated DC/DC converters for signal conditioning. Common configurations control TIG and MIG welding systems in pipe welding, tube mills, and automated fabrication cells.
Category: Welders
Manufacturer: Jetline Engineering
Manufacturer Synonyms: Miller
Manufacturer Part Number: 9500
If overlay/keypad is defective that will be quoted as an additional item.
Common Failures
Common issues reported by customers include units not powering up or retaining configurations. These symptoms may be related to components such as non-volatile SRAM, power supplies, or display modules. When these components fail, the unit may exhibit memory corruption, lost parameters, or failure to respond to commands.
Repair Approach
Our repair process involves evaluating the unit and replacing defective components as identified during inspection. This may include SRAM chips, power supply capacitors, display modules, or connectors. Diagnostic testing is performed to identify additional concerns such as improperly seated components or issues from previous service attempts. Mechanical integrity is restored as needed through appropriate repair methods.
Testing & Quality
Each repaired unit undergoes testing to verify functionality. This includes basic function tests, analog current control verification, and input/output validation. Burn-in testing may be performed to confirm operational stability. Repairs are reviewed by our technicians to maintain quality standards.
Service and repair your broken Jetline Engineering part
We can repair your Jetline Engineering model 9500 in our facility. Let our skilled technicians get your Jetline Engineering back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
