Repair
Repair Price: $ 1,244.00
Purchase
CSL Part Number: 82732

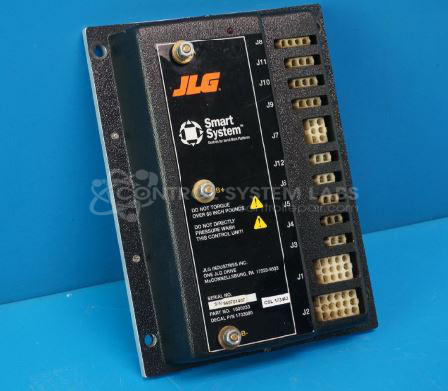

Product Overview: The JLG Smart System Control (part number 1600233) is a microcontroller-based control module used in JLG scissor lifts, particularly the 1932 E 5LG model. It manages platform functions and safety systems for aerial work platforms. The board features a 16-bit Hitachi microcontroller, buffer/line drivers, power MOSFETs for output control, and various I/O connectors for interfacing with lift sensors and actuators. This module coordinates operator inputs with hydraulic and electrical systems to enable safe platform operation and positioning.
Category: Control Module
Manufacturer: JLG
Manufacturer Synonyms: JLG Industries
Manufacturer Part Number: 1600233
Also Known As(AKA): 1703080
Often found in a 1932 E 5LG Scissor Lift
Common Failures
Frequently encountered issues with this product include board corrosion, which may affect output connections. Component failures have also been observed, including microcontrollers and buffer/line drivers. Physical damage to leads can occur during handling or testing.
Repair Approach
Repairs may involve component replacement, corrosion cleaning, and restoration of affected areas. If corrosion is severe or required components are unavailable, the unit may be evaluated as Beyond Economic Repair. Each unit is reviewed individually, and a quotation is provided before repair work begins.
Service and repair your broken JLG part
We can repair your JLG model 1600233 in our facility. Let our skilled technicians get your JLG back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
