Repair Price: $ 1,284.00
Purchase
CSL Part Number: 82816

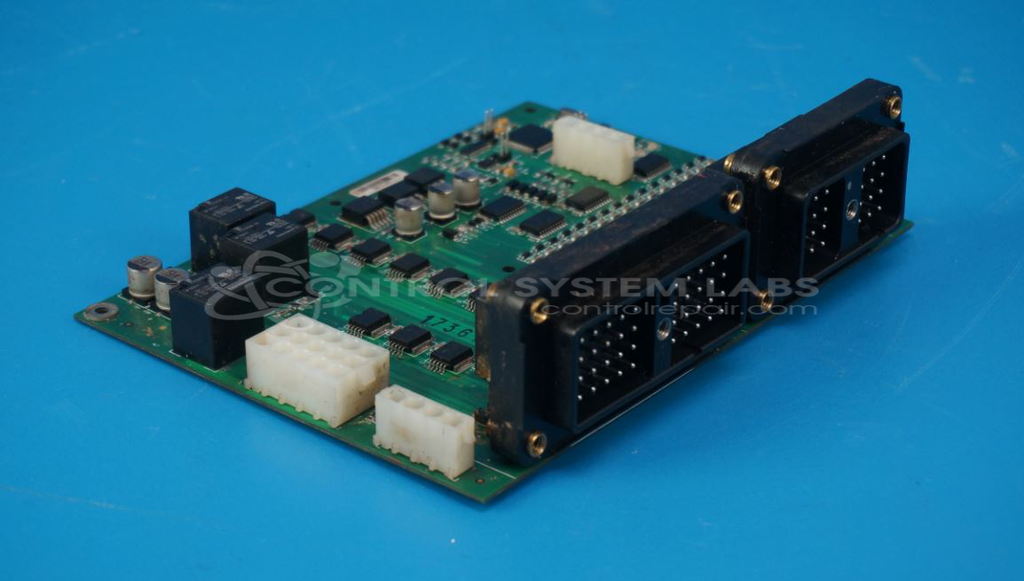

Product Overview: The JLG 200563-001 REV A is a control board designed for aerial work platforms, specifically used in 400CRT lifts and other JLG models. This board manages essential control functions for the equipment's operation. It features protective circuitry including PTC resettable fuses rated at 0.75A hold/1.5A trip, along with electrolytic capacitors for power filtering and conditioning. The board operates on low-voltage DC power and is conformally coated for environmental protection in industrial applications.
Category: Control Board
Manufacturer: JLG
Manufacturer Synonyms: JLG Industries
Manufacturer Part Number: 200563-001 REV A
Common Failures
Common issues with this product include lack of output power despite receiving input power. This can sometimes be attributed to damage that may render the unit beyond economic repair. Another frequent issue is a blown fuse, which can affect operation.
Repair Approach
When repairable, blown fuses are identified and replaced. Preventative measures may include replacing capacitors to enhance reliability. Circuit board traces, if damaged, are repaired, and boards are thoroughly cleaned to remove any contamination contributing to failure.
Testing & Quality
Repairs undergo diagnostic testing to verify the integrity of replaced components. This includes checking other components for issues and confirming that preventative replacements are functioning correctly. Thorough testing is performed to maintain quality and reliability.
Limited Repair
The JLG part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your JLG part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
