Repair
Repair Price: $ 894.00
Purchase
CSL Part Number: 116019

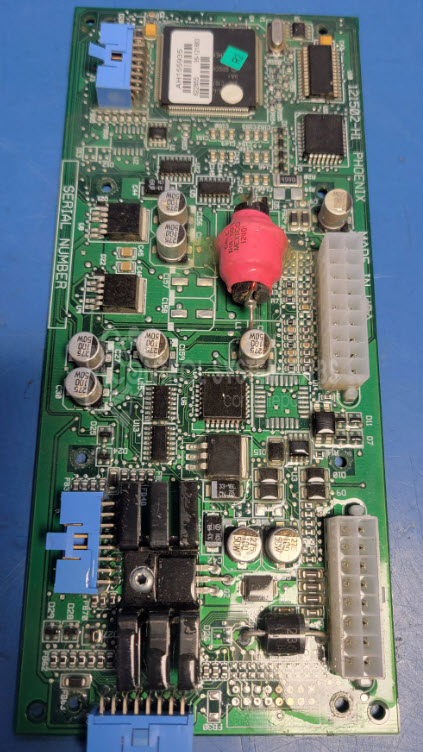

Product Overview: The John Deere AH155935 is a cornerpost motherboard that serves as the main control interface for John Deere agricultural equipment display systems. It operates on 12VDC input power and provides regulated 5V output through an onboard voltage regulator. This motherboard connects to three display boards (T110467, T110468, T110469) and manages serial bus communications through the main processor, which sends signals including SCL, DN, INH, and CE lines through 348-ohm resistors with TVS zener diode protection for signal integrity and electrical protection.
Category: Control Board
Manufacturer: John Deere
Alternate Manufacturer Names: Phoenix International Corp.

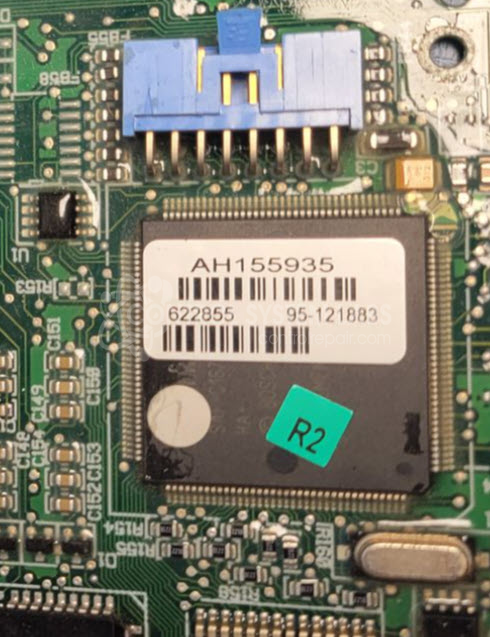

Manufacturer Part Number: AH155935

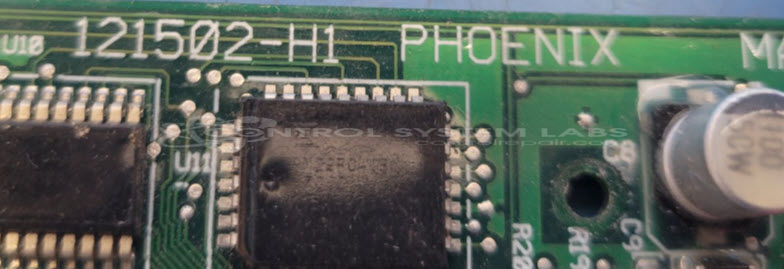

Also Known As(AKA): 121502-HI
Other Synonyms: Phoenix International Corp.
Limited Repair
The John Deere part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your John Deere part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
