Repair
Repair Price: $ 1,012.00
Purchase
CSL Part Number: 85829

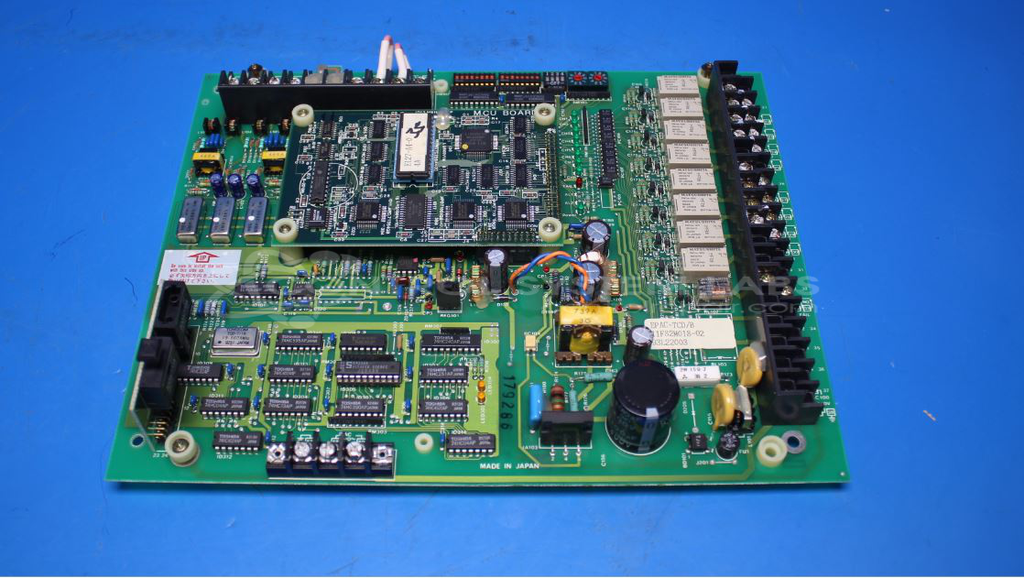

Product Overview: The EPAC-TCD/B is a heater control board manufactured by JSW for paper manufacturing machinery. It regulates temperature by managing heater circuits and monitoring thermal feedback. This MCU-based board features onboard voltage regulation including +15V supply and capacitor banks for power conditioning. It is used in paper processing equipment where precise temperature control is critical to product quality and machine operation. The board includes temperature sensing inputs and shutdown protection to prevent overheating.
Category: Control Board
Manufacturer: JSW
Manufacturer Synonyms: The Japan Steel Works
Manufacturer Part Number: EPAC-TCD/B
Also Known As(AKA): 11F82M018-02 Heater board
Common Failures
This unit type has been observed with failures related to capacitors and power regulation circuitry. Issues may include intermittent operation or unexpected shutdowns.
Repair Approach
The repair process involved cleaning the circuit board, replacing defective capacitors, and addressing damaged traces in the power regulation circuit. Components were tested to verify proper function.
Testing & Quality
Component-level and power supply tests were conducted to verify proper operation of the repaired unit. We recommend that the customer perform final system-level testing upon installation to confirm compatibility with their specific application.
Service and repair your broken JSW part
We can repair your JSW model EPAC-TCD/B in our facility. Let our skilled technicians get your JSW back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
