Repair
Repair Price: $ 972.00
Purchase
CSL Part Number: 67261

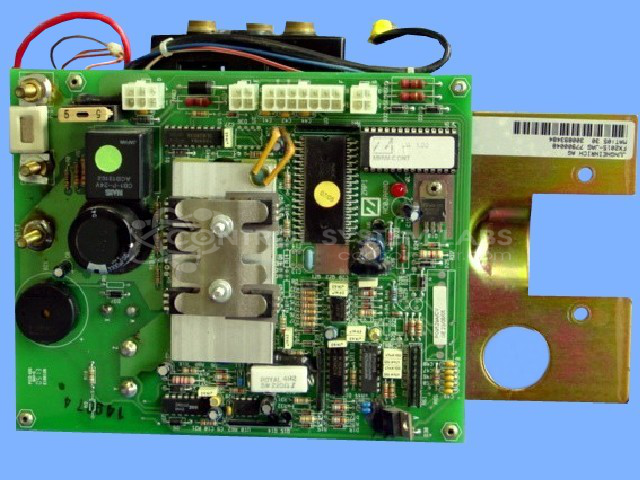

Product Overview: The FX2015-JAG is a walk-behind lift truck motor control manufactured by Jungheinrich for electric pallet jacks and similar material handling equipment. It regulates motor speed and direction by controlling DC voltage output to the drive motor, typically operating at 24V nominal. The unit uses contactors to switch motor power and includes protective circuits for safe operation in warehouse and industrial environments. This control is commonly found in Jungheinrich walk-behind forklift trucks and electric pallet jacks where operator proximity requires compact, responsive motor control systems.
Category: Motor Controls
Manufacturer: Jungheinrich Ag
Manufacturer Part Number: FX2015-JAG 77900048
Please send in for evaluation with any wiring diagrams that you have with it.
Common Failures
One issue reported for this product is the lack of DC output to the motor. This symptom can occur when there is a problem with the connection at the contactor.
Repair Approach
To address the problem of no DC output to the motor, diagnostic testing is conducted and new wires with appropriate terminals are installed when needed. In some cases, a custom test fixture is used to verify proper connection between the motor and the contactor.
Testing & Quality
After repairs, units are subjected to a thorough testing process. This includes diagnostic tests with and without motor connections to verify proper functionality. Additionally, a burn-in test with a 90Vdc motor is performed to confirm the unit operates correctly at maximum speed. Repaired units that pass these tests are returned as serviceable, with no faults detected and with confirmed voltage output to the motor.
Repair your broken Jungheinrich Ag part
We can repair your Jungheinrich Ag model FX2015-JAG 77900048 .
Please note: our repair turnaround time may be longer than our standard lead times for this item.
Step 1 -
Click the green button above, "Repair Now," and add to your RMA.
Step 2 -
Print the RMA form that is emailed to you, and put it in a box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
You will be sent an authorization for repair via email. Your approval is needed before any work is started.
