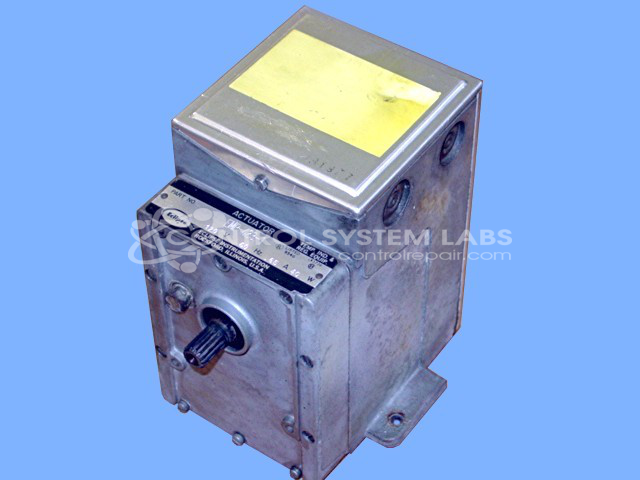

Karl Dungs EMP-424-1 Low Torque Actuator 90Deg.

Repair

Repair Price: $ 568.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/93748/image_1920?unique=2afbc83
  • Condition

Purchase Price: $ 0.00 $ 0.00 568.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 63309
Product Overview: A low-torque electric actuator providing 90-degree rotary motion for positioning dampers, valves, and air-fuel controls in industrial burner and combustion systems. Oil-filled mechanism with integrated limit switches and adjustable lift cams for precise end-of-travel control.
Category: Actuators
Manufacturer: Karl Dungs
Alternate Manufacturer Names: BARBER COLMAN
Manufacturer Part Number: EMP-424-1
Other Synonyms: BARBER COLMAN

Common Failures

One reported issue with this product is the malfunctioning of internal switches, often due to missing components such as the switch spring. This can lead to operational disruptions.

Repair Approach

In cases where switches are faulty, the repair process may involve replacing the missing switch spring and reassembling the switch. Additional steps may include polishing components and thorough cleaning.

Testing & Quality

Post-repair, the unit undergoes testing, including cycling for numerous operations to confirm reliability and checking for potential oil leaks. These measures help verify the repair outcome.

Service and repair your broken Karl Dungs part


We can repair your Karl Dungs model EMP-424-1 in our facility. Let our skilled technicians get your Karl Dungs back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
