CSL Part Number: 38610

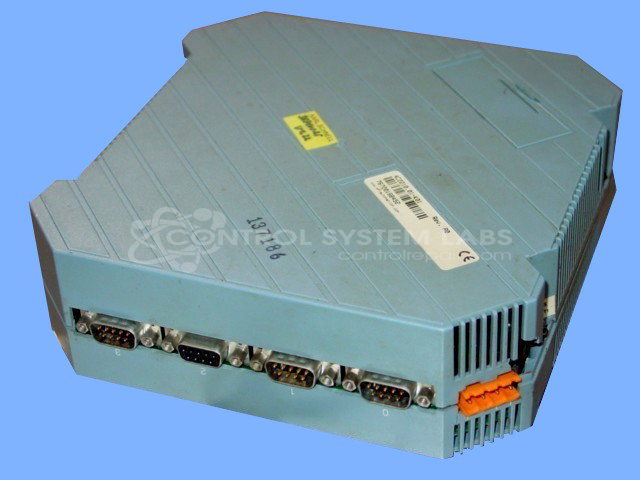

Product Overview: The Karl Schnell 4C2210.01-K01 is an output control module used in operator and monitor workstation systems for industrial applications. It serves as an interface between control systems and operator displays or keypads, facilitating communication and signal distribution in automated environments. Commonly found in paper processing and food manufacturing facilities, this unit features multiple connector types including RJ-11 and D-SUB interfaces for connecting peripheral devices. The module coordinates control signals and data exchange between the main control system and user interface components.
Category: Operator / Monitor Workstation
Manufacturer: Karl Schnell
Manufacturer Part Number: 4C2210.01-K01
Also Known As(AKA): 357100
Please include touch screen or display this is used with, manuals and wiring diagrams for the machine this is out of when sending in.
Common Failures
Typical issues for this product involve water and moisture damage, which can lead to corrosion. A frequent symptom reported is connectivity failure, particularly with cable connectors that cease to communicate properly. Another common issue includes odor and residue contamination due to use in certain industrial environments. This can result in corroded integrated circuits and connectors.
Repair Approach
The repair process generally involves replacing corroded connectors and addressing corrosion on circuit boards through thorough cleaning. Due to the complex nature and extent of damage, repairs can be time-consuming. We evaluate each unit individually and provide a quotation before any repair work begins.
Testing & Quality
Devices undergoing repair are subjected to burn-in tests with loads, such as customer display and keypad testing. Communication functions with displays are also evaluated to confirm proper operation. Testing procedures vary based on the specific unit condition and available test equipment.
Service and repair your broken Karl Schnell part
We can repair your Karl Schnell model 4C2210.01-K01 in our facility. Let our skilled technicians get your Karl Schnell back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
