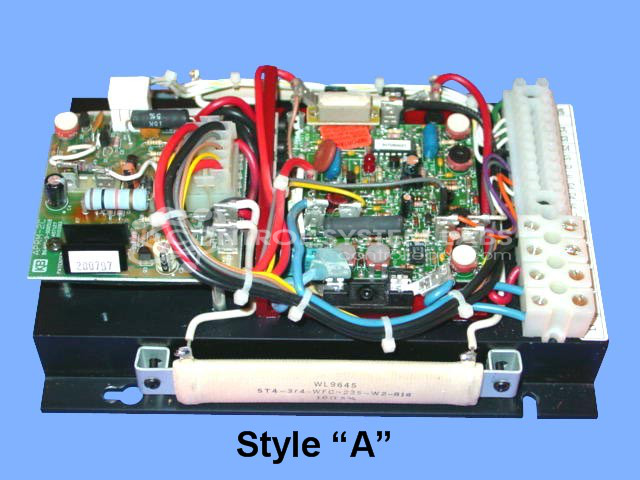

KB Electronics KBCC-225R Variable Speed DC Drive with Reverse Module

Repair

Repair Price: $ 404.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/24278/image_1920?unique=dbfd93a
  • Condition

Purchase Price: $ 0.00 $ 0.00 404.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 4631
Category: DC Motor Controls
Manufacturer: KB Electronics
Manufacturer Synonyms: NIDEC
Manufacturer Part Number: KBCC-225R
Series: KBCC DC Drive

Common Failures

Typical failures include shorted diodes, burnt traces, and faulty limit switches. Instances of missing fuses, deformed capacitors, and shorted transistors have also been reported. Older units frequently exhibit aged and leaky capacitors.

Repair Approach

Repairs often involve replacing faulty components such as diodes, switches, transistors, and fuses. In some cases, PCB reconstruction and rewiring of brake resistors are necessary to restore functionality. Routine resoldering and cleaning are also performed as needed.

Testing & Quality

After completing repairs, each unit undergoes testing, including burn-in testing ranging from 30 minutes to 8 hours, depending on the repair complexity. These tests help ensure reliable operation and adherence to performance standards.

Service and repair your broken KB Electronics part


We can repair your KB Electronics model KBCC-225R in our facility. Let our skilled technicians get your KB Electronics back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
