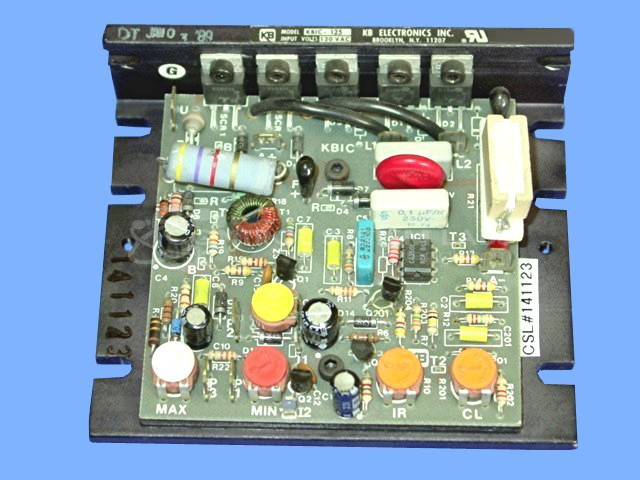

KB Electronics KBIC-125 120 VAC Input 3/4 to 1 1/2 HP DC Motor Speed Control

Repair

Repair Price: $ 320.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/24263/image_1920?unique=2d71f7f
  • Condition

Purchase Price: $ 0.00 $ 0.00 320.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 4614
Product Overview: A variable-speed DC motor control (SCR-based) that regulates the speed of permanent magnet and shunt-wound DC motors. Accepts 120 VAC input and drives motors from 3/4 to 1-1/2 HP at up to 90 VDC output. Features adjustable minimum/maximum speed settings for industrial machinery.
Category: DC Motor Controls
Manufacturer: KB Electronics
Manufacturer Synonyms: NIDEC
Manufacturer Part Number: KBIC-125
Series: KBIC Variable Speed Motor Control

Common Failures

Units may exhibit issues such as damaged traces, loose fuse holders, and failed capacitors. Other observed problems include a failed varistor and a missing horsepower resistor, as well as control problems due to broken resistor leads and damaged traces.

Repair Approach

Repairs typically involve replacing damaged components such as potentiometers, capacitors, varistors, and resistors. Damaged traces and broken leads are repaired, and thorough cleaning and resoldering are performed as necessary. Components such as capacitors may be replaced as a precaution.

Testing & Quality

Once repairs are completed, units undergo testing to verify functionality. This includes adjusting operational parameters and conducting burn-in tests to confirm that units are operating as expected.

Service and repair your broken KB Electronics part


We can repair your KB Electronics model KBIC-125 in our facility. Let our skilled technicians get your KB Electronics back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
