Repair
Repair Price: $ 400.00
Purchase
CSL Part Number: 32060

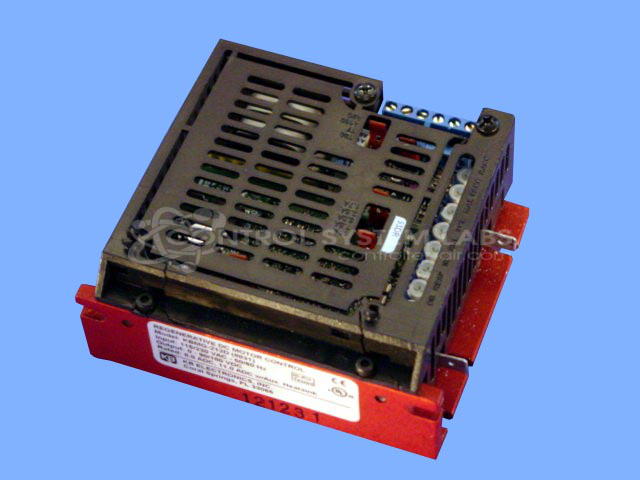

Product Overview: A regenerative DC drive providing four-quadrant speed and torque control for shunt-wound and permanent magnet DC motors up to 1.5 HP. It delivers 0-90/180VDC output from AC input and supports forward/reverse operation with adjustable max speed and current limiting, used in industrial machinery requiring dynamic braking.
Category: DC Motor Controls
Manufacturer: KB Electronics
Manufacturer Synonyms: NIDEC
Manufacturer Part Number: KBMG-212D
Also Known As(AKA): 8831 P/N
We repair and burn in your motor drive on our test bench.
Common Failures
Issues observed in the repair history include shorted and blown components, particularly SCRs, resistors, capacitors, and burnt traces on the circuit board. Units have been received with symptoms such as no output or configured incorrectly for the applied voltage.
Repair Approach
Repairs typically involve replacing damaged components such as SCRs, resistors, capacitors, rectifiers, and potentiometers. Circuit board traces are repaired as necessary. Resoldering and cleaning are integral steps in the repair process.
Testing & Quality
After repairs, testing is conducted to ensure proper operation. This includes voltage adjustments, burn-in tests with motors, and ensuring the unit operates according to design specifications. Customers are occasionally advised to check other equipment components after receiving their repaired units.
Service and repair your broken KB Electronics part
We can repair your KB Electronics model KBMG-212D in our facility. Let our skilled technicians get your KB Electronics back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
