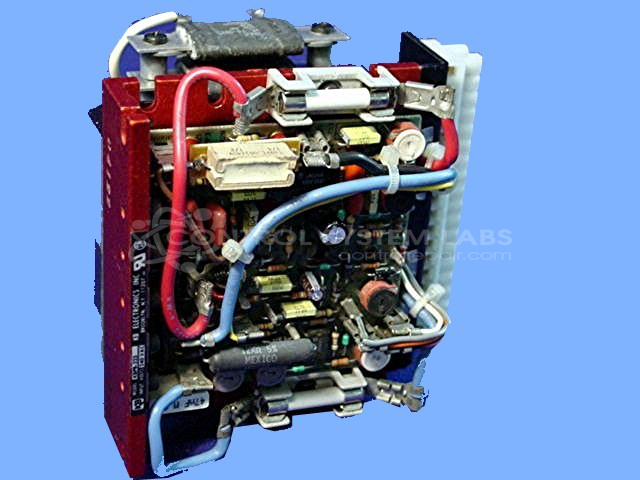

KB Electronics KBPB-225 W/APRM BOARD DC Drive 1.5 HP with Anti Plug Instant Reverse

Repair

Repair Price: $ 400.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/24355/image_1920?unique=5f72ed8
  • Condition

Purchase Price: $ 0.00 $ 0.00 400.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 4713
Product Overview: A 1.5 HP DC motor speed control that regulates the speed of permanent magnet and shunt-wound DC motors, providing 0 to 180V armature output. It features an anti-plug reverse module (APRM) for instant reversing with adjustable min/max speed and IR compensation potentiometers.
Category: DC Motor Controls
Manufacturer: KB Electronics
Manufacturer Synonyms: NIDEC
Manufacturer Part Number: KBPB-225 W/APRM BOARD

Common Failures

Typical issues reported include missing or loose connections, shorted diodes, open or burnt resistors, and missing or improper fuses. Some units were found with incorrect board installations, which required replacement to restore proper function. Issues with output voltage fluctuation were also noted.

Repair Approach

Repairs generally involved replacing faulty components such as diodes, resistors, fuses, and capacitors. In cases of incorrect board installation, the appropriate board was installed. Additionally, adjustments were made for proper output settings to bring the unit within specified parameters.

Testing & Quality

After repairs, testing was conducted, including burn-in periods ranging from 1 to 6 hours. Units were tested with specific output settings to confirm they met expected operational standards. Adjustments were made to verify the proper operation of all potentiometers and overall control functionality.

Service and repair your broken KB Electronics part


We can repair your KB Electronics model KBPB-225 W/APRM BOARD in our facility. Let our skilled technicians get your KB Electronics back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
