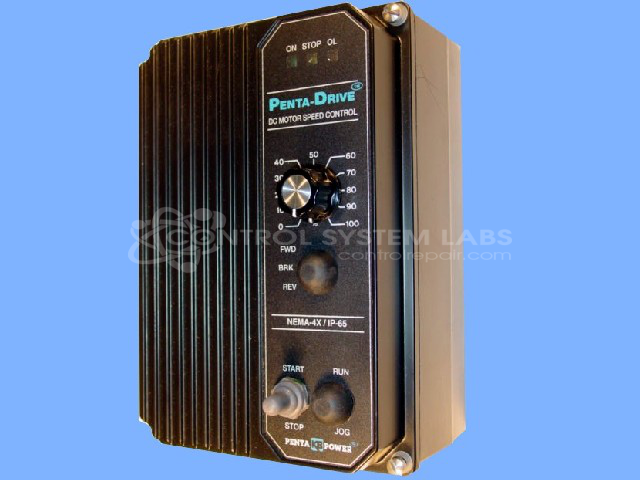

KB Electronics KBPC-240D Penta-Drive DC Motor with NEMA 4 Housing

Repair

Repair Price: $ 464.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/39514/image_1920?unique=aea7a8e
  • Condition

Purchase Price: $ 0.00 $ 0.00 464.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 20350
Product Overview: A variable-speed DC motor control drive rated up to 1 HP, housed in a NEMA 4 enclosure for washdown or dusty environments. It provides adjustable speed and torque regulation with forward-brake-reverse operation and selectable AC input (120/240 VAC) for industrial DC motor applications. Supports 90V and 180V armature outputs.
Category: DC Motor Controls
Manufacturer: KB Electronics
Manufacturer Synonyms: NIDEC
Manufacturer Part Number: KBPC-240D
Series: KBPC Speed and Torque Control Drive
Also Known As(AKA): 9338 9342

Common Failures

Units may experience issues such as shorted or failed diodes, burnt traces, and missing components like fuses and switches. Incorrect wiring and faulty IC components are also observed in repair evaluations.

Repair Approach

Repairs typically involve replacing faulty components, such as switches, diodes, ICs, capacitors, and transformers. Resoldering, cleaning, and adjusting voltage outputs are common practices. Components like speed pots and terminal strips may also be replaced as needed.

Testing & Quality

Once repairs are completed, units undergo testing, including voltage checks and burn-in tests. Testing duration varies based on the unit and repair scope. All repairs and tests are documented to maintain quality standards.

Service and repair your broken KB Electronics part


We can repair your KB Electronics model KBPC-240D in our facility. Let our skilled technicians get your KB Electronics back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
