Repair Price: $ 1,540.00
Purchase
CSL Part Number: 100251

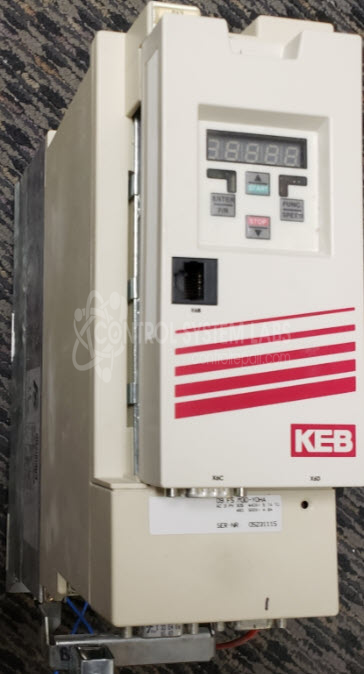

Product Overview: The KEB COMBIVERT F5 Series AC Inverter is a 1.5 kW variable frequency drive rated for 480V input, designed to control three-phase AC motors in industrial applications. It features integrated resolver feedback capability for precise position and speed control, commonly used in paper processing equipment and other machinery requiring servo-like performance. The drive includes built-in diagnostics accessible via keypad or serial communication, supports CAN bus and RS-232 protocols, and requires proper thermal management through its internal cooling fan. Typical configurations include encoder or resolver input options and programmable parameter sets for various motor types.
Category: AC Motor Controls
Manufacturer: KEB Electronic
Manufacturer Synonyms: Karl E. Brinkmann
Manufacturer Part Number: 09.F5.M3D-Y0HA
Series: F5 Series AC Motor Drive
Brand: COMBIVERT
Common Failures
Frequent issues reported with this product include voltage irregularities, fan failures, and error messages such as E.dOH, No Pu, E.l5F, and overcurrent alerts. These problems often result from defective components such as capacitors, optocouplers, resolver decoder ICs, and axial fans.
Repair Approaches
Repairs may include replacing failed components like capacitors and fans, reconnecting disconnected wiring such as thermistor leads, and addressing software or configuration issues that result in communication errors. In some cases, components are no longer available, and the unit may be returned as unrepairable.
Testing and Quality Control
Testing procedures typically involve diagnostic runs, functionality checks with motors, and extended burn-in sessions. Units are subjected to detailed inspection and cleaning before final tests, which include functionality and communication tests to verify the drive can operate with motors and read resolver feedback correctly.
Service and repair your broken KEB Electronic part
We can repair your KEB Electronic model 09.F5.M3D-Y0HA in our facility. Let our skilled technicians get your KEB Electronic back in operation quickly.
