Repair
Repair Price: $ 1,000.00
Purchase
CSL Part Number: 80690

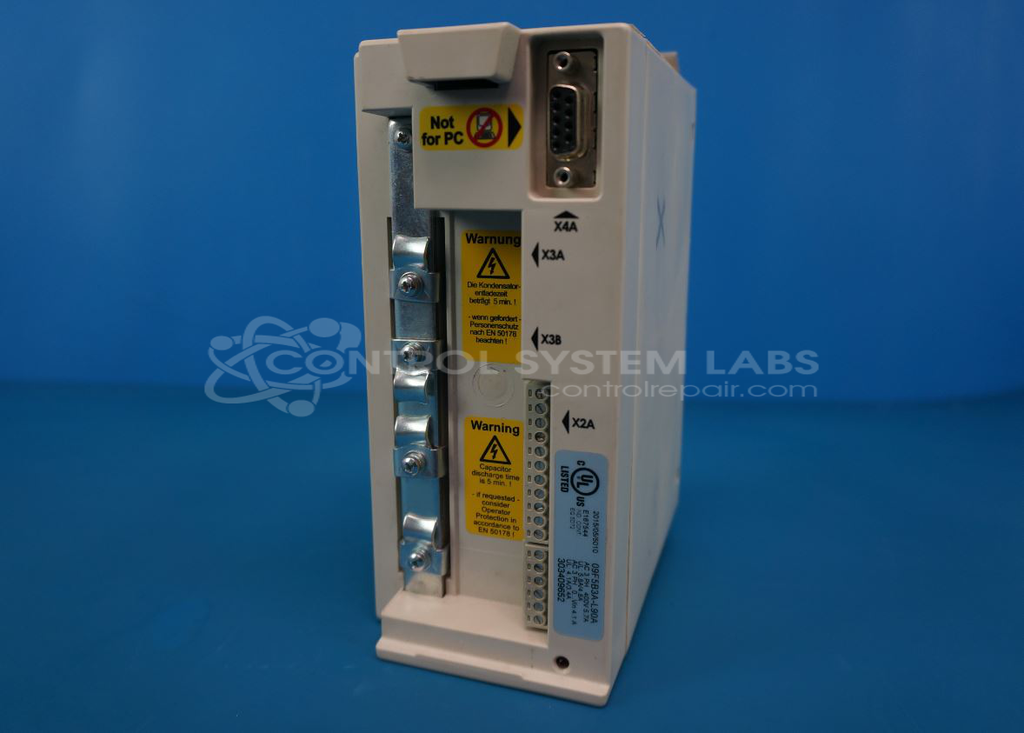

Product Overview: A 1.5 kW AC inverter drive that controls the speed and torque of three-phase AC motors by varying output frequency and voltage. Supporting output frequencies up to 100 Hz, it is used in industrial motion and machinery applications requiring precise variable-speed motor control.
Category: AC Motor Controls
Manufacturer: KEB Electronic
Manufacturer Synonyms: Karl E. Brinkmann
Manufacturer Part Number: 09F5B3A-L90A
Series: F5 Series AC Motor Drive
Brand: COMBIVERT
Common Failures
This product has experienced recurring issues related to fault conditions that prevent reset and power unit faults. Specific problems have included faults in the power unit and issues with the +12V DC fan not operating properly due to environmental conditions.
Repair Approach
Repairs have involved replacing faulty components such as electrolytic capacitors, the TL2844B component, and the +12V DC fan. It is important to ensure that the fan is operational and free from obstruction.
Testing & Quality
Repaired units undergo testing to verify functionality, including output verification at 60Hz. Testing may include varying frequencies and ensuring fan operation. Maintaining a clean environment for the unit is recommended to support continued operation.
Service and repair your broken KEB Electronic part
We can repair your KEB Electronic model 09F5B3A-L90A in our facility. Let our skilled technicians get your KEB Electronic back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
