Repair Price: $ 1,192.00
Purchase
CSL Part Number: 87738

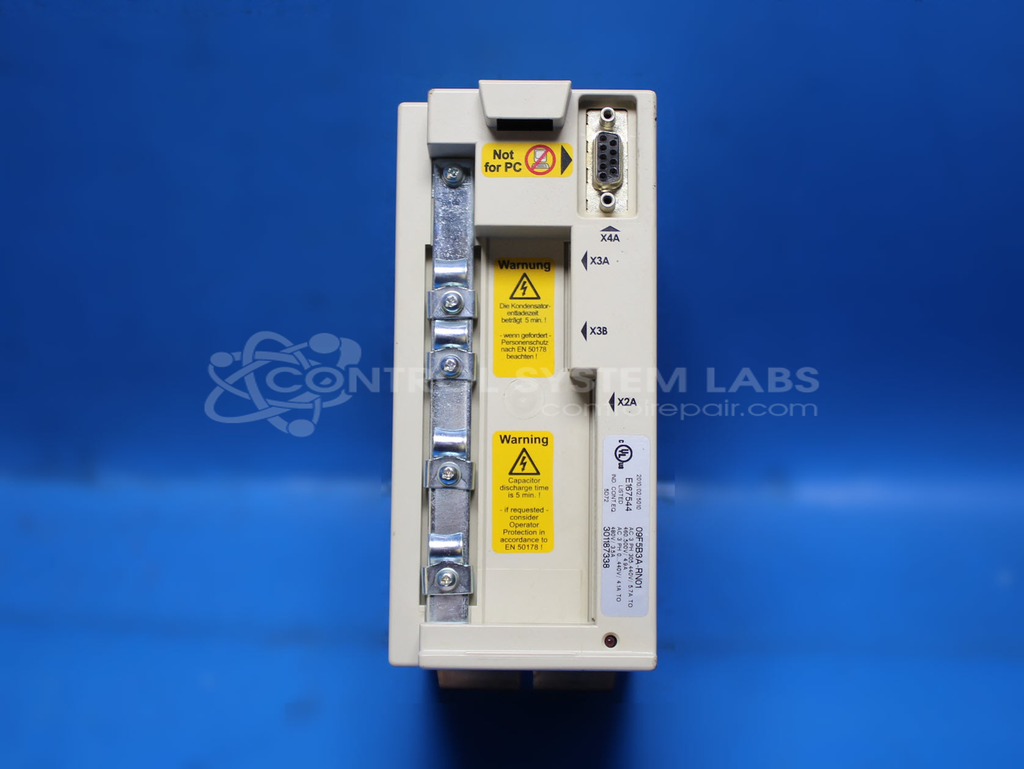

Product Overview: This 2 HP (1.5 kW) AC motor drive operates on 460 V three-phase input and provides variable frequency control of AC induction motors by adjusting output voltage and frequency. Commonly used in industrial automation, conveyors, pumps, and machinery requiring precise speed and torque regulation.
Category: AC Motor Controls
Manufacturer: KEB Electronic
Manufacturer Synonyms: Karl E. Brinkmann
Manufacturer Part Number: 09F5B3A-RN01
Series: F5 Series AC Motor Drive
Brand: COMBIVERT
Common Failures
Based on CSL evaluation history, common issues with this unit type include low voltage electrolytic capacitor degradation and gate pulse irregularities that may be related to microcontroller output. In some cases, units exhibiting these faults have been determined to be Beyond Economic Repair (BER).
Repair Approach
The standard repair approach includes replacement of low voltage electrolytic capacitors and evaluation of gate signal paths to identify the source of pulse irregularities.
Testing & Quality
Following component replacement, power-up testing is performed to verify proper microcontroller operation and gate signal integrity. If testing reveals additional faults that are not cost-effective to address, the unit may be classified as Beyond Economic Repair (BER) and returned unrepaired at the customer's direction.
Service and repair your broken KEB Electronic part
We can repair your KEB Electronic model 09F5B3A-RN01 in our facility. Let our skilled technicians get your KEB Electronic back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
