CSL Part Number: 85217

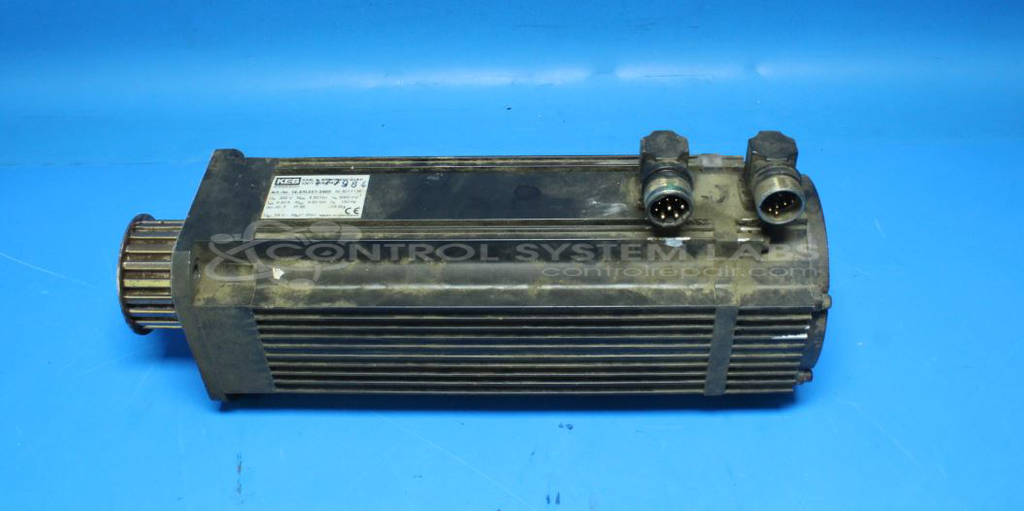

Product Overview: A brushless servo motor with an integrated resolver for precise rotor position and speed feedback. The resolver provides sine/cosine outputs that define a unique position across each shaft rotation. Equipped with a holding brake, it drives motion control in automated machinery and industrial equipment.
Category: Servo Motors
Manufacturer: KEB Electronic
Manufacturer Synonyms: Karl E. Brinkmann
Manufacturer Part Number: 14.SM.001-3400
Common Failures
Some units may exhibit feedback output issues where an incorrect reading is reported. This issue is typically related to the feedback system and requires evaluation.
Repair Approach
The repair process involves releasing the brake to ensure the shaft moves freely and performing a series of tests to validate resolver function. By applying voltage and observing the sine/cosine output variations, each position during shaft rotation is confirmed to produce the expected voltage profile.
Repair your broken KEB Electronic part
We can repair your KEB Electronic model 14.SM.001-3400 .
Please note: our repair turnaround time may be longer than our standard lead times for this item.
Step 1 -
Click the green button above, "Repair Now," and add to your RMA.
Step 2 -
Print the RMA form that is emailed to you, and put it in a box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
You will be sent an authorization for repair via email. Your approval is needed before any work is started.
