Repair
Repair Price: $ 2,380.00
Purchase
CSL Part Number: 67757
Category: Motor Controls
Manufacturer: KEB Electronic
Manufacturer Synonyms: Karl E. Brinkmann
Alternate Manufacturer Names: hydrovane

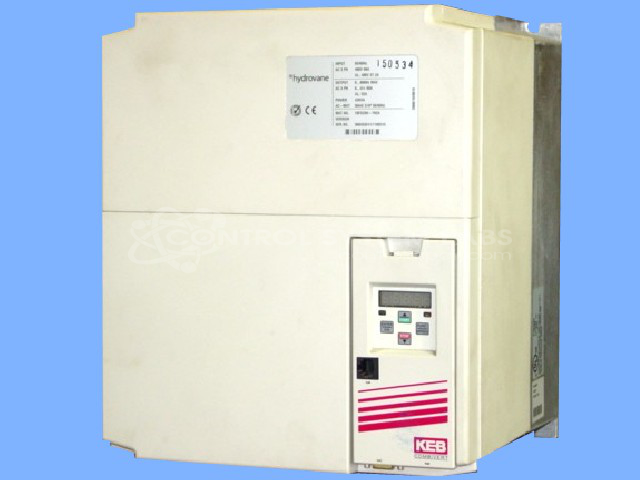

Manufacturer Part Number: 19F5C0H-Y02A
Series: F5 Series AC Motor Drive
Brand: COMBIVERT
Other Synonyms: hydrovane
Common Failures
Customers have reported that their HV-30 compressor experiences an issue where the motor begins to spin and shortly after, the drive trips with an overcurrent error (E.OC). This typically indicates a problem with the drive's internal components.
Repair Approach
During evaluation, small electrolytic capacitors were found out of specification. Repairs included cleaning the drive and replacing the faulty capacitors. The drive was tested thoroughly using specialized equipment.
Testing & Quality
Post-repair testing included running a 30 HP motor at 38 Hz and 15 amps per phase. The system was subjected to a two-hour burn-in period to validate performance and reliability.
Service and repair your broken KEB Electronic part
We can repair your KEB Electronic model 19F5C0H-Y02A in our facility. Let our skilled technicians get your KEB Electronic back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
