Repair Price: $ 3,988.00
Purchase
CSL Part Number: 69848

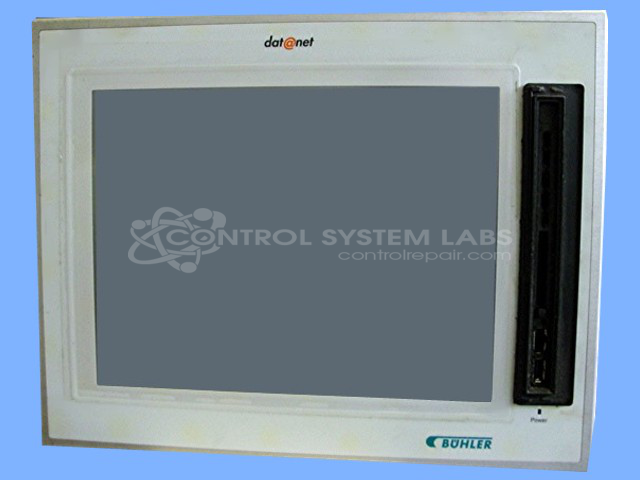

Product Overview: The Buhler K2-400 is a 12.1-inch industrial panel PC manufactured by KEBA. It features a 400 MHz Celeron processor, four USB interfaces, one Ethernet interface, and one K-Net interface for industrial networking. This rugged HMI is commonly used in paper manufacturing and processing equipment requiring real-time machine control and visualization. The unit includes an integrated touchscreen for operator interaction and runs from a CompactFlash card containing the operating system and application software.
Category: Display
Manufacturer: KEBA
Manufacturer Part Number: 67182
Also Known As(AKA): 457/X HARDWARE #
Common Failures
Customers have reported issues with the control system being non-responsive and touchscreen functionality where the cursor remains static in the middle of the screen.
Repair Approach
The non-responsive control system was addressed by replacing certain internal components such as batteries and fans, followed by cleaning and diagnostic testing. For the touchscreen issue, a previous repair left a cable improperly connected. By re-seating the touchscreen cable and replacing some capacitors, the touchscreen functionality was restored. However, to fully verify the boot process, the appropriate CF card would be required.
Testing & Quality
Repair efforts included diagnostic testing and a Burn-In Test without load. Evaluated units passed diagnostic testing after repairs, although further testing could not be completed without the correct CF card for boot verification.
Service and repair your broken KEBA part
We can repair your KEBA model 67182 in our facility. Let our skilled technicians get your KEBA back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
