CSL Part Number: 36340

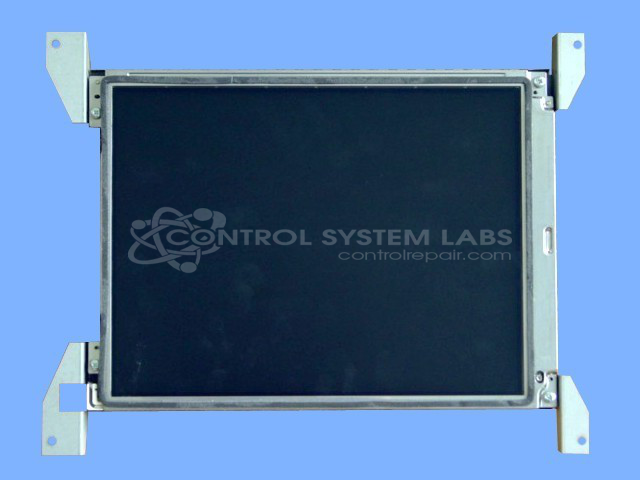

Product Overview: A 10.4 inch TFT LCD display module paired with an integrated VGA controller board, used in industrial operator interface panels and HMI terminals. Features CCFL backlighting with inverter PCB, accepts +12vDC and +5vDC supply, and uses a 10-bit differential signal input for video.
Category: LCD Monitors
Manufacturer: KEBA
Manufacturer Part Number: K-TFT-AN-CCF
Also Known As(AKA): W/SHARP MONITOR
Common Failures
Common issues reported include no backlight functionality and displays that do not power on even when the backlight is operational. Other problems include physical damage such as bent corners from shipping, and controller assembly issues that may result in electrical faults or signal transmission failures.
Repair Approach
Repairs may involve the replacement of screens, backlight assemblies, controller cards, or related components. When backlight issues are identified, typical causes include failed bulbs or backlight assemblies, which are replaced as needed. Repairs may also include replacement of electrolytic capacitors on inverter assemblies or other circuit boards.
Testing & Quality
Post-repair testing verifies the functionality of replaced components such as backlights and inverters. In some cases, full interface or display function testing may not be possible due to equipment limitations. Units identified as Beyond Economic Repair (BER) are not repaired when repair costs exceed the value of the unit, and customers are consulted regarding return or recycling options.
We do NOT offer repair on this item
Unfortunately, Control System Labs does NOT offer repair for the KEBA part number . Here are some possible reasons:
- the parts may no longer be available
- the item may be encased in plastic epoxy
- we do not have the necessary equipment to do the repair.
Please contact the manufacturer of this part number to see if a new part number or compatible replacement is available.
