Repair
Repair Price: $ 644.00
Purchase
CSL Part Number: 84623

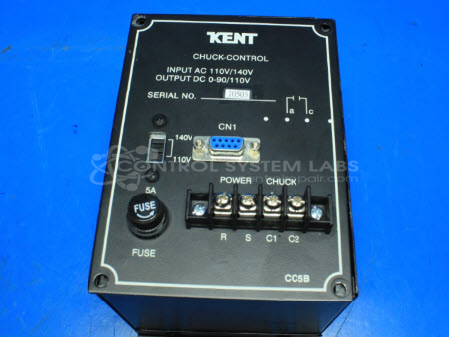

Product Overview: A chuck control assembly that regulates magnetic chuck operation by managing output voltage and current to hold workpieces during machining or grinding. It features onboard voltage regulation, relay switching, and a DB9 connector for interfacing with external control circuitry.
Category: Control Assembly
Manufacturer: KENT
Manufacturer Part Number: CC5B
Common Failures
The unit was evaluated and an output issue was identified related to damaged circuit traces near a zener diode component.
Repair Approach
The repair included addressing the damaged traces and cleaning the affected area. Two stand-offs were replaced and secured with epoxy. The unit was then reassembled and tested for proper operation.
Testing & Quality
Following repair, the unit's functions were tested to verify proper operation. The unit underwent a two-hour burn-in test and operated successfully with external control circuitry provided by the customer.
Service and repair your broken KENT part
We can repair your KENT model CC5B in our facility. Let our skilled technicians get your KENT back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
