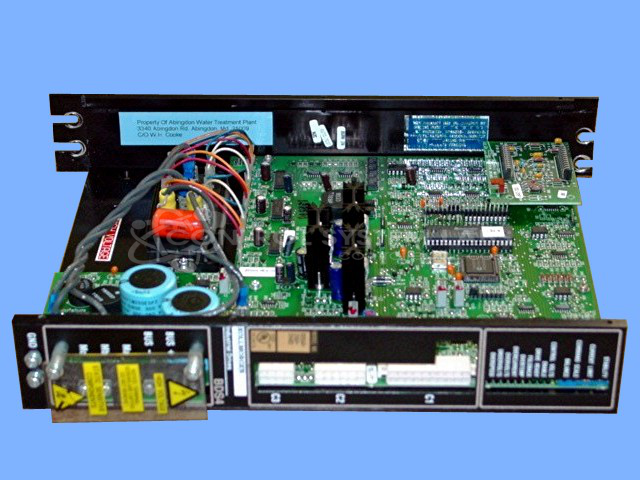

Kollmorgen BDS4A-206H-204B2 BDS4 230VAC 6A Amplifier
Repair
Repair Price: $ 1,512.00
Purchase
CSL Part Number: 36143
Product Overview: A brushless servo amplifier that drives AC servo motors in industrial motion control and machine tool systems. Operates from 230VAC input with a 6A continuous output rating. Features adjustable command scaling, fold-back current limiting, and onboard fault indication for over-current, over-voltage, and under-voltage conditions.
Category: Motor Controls
Manufacturer: Kollmorgen
Alternate Manufacturer Names: Kollmorgen, Danaher, Cincinnati Milacron, Industrial Drives
Manufacturer Part Number: BDS4A-206H-204B2
Other Synonyms: Kollmorgen, Danaher, Cincinnati Milacron, Industrial Drives
Common Failures
Customers frequently report issues with overcurrent or overvoltage faults, often accompanied by fold-back faults causing the device to temporarily reduce functionality. These issues are typically traced back to shorted output modules and defective power supply capacitors.
Repair Approach
Repairs commonly involve replacing faulty output modules and defective capacitors of various specifications. Adjustments to the command scale potentiometer may also be performed to optimize motor performance and reduce the potential for overheating.
Testing & Quality Assurance
Post-repair, the device undergoes thorough testing to verify the operation of DC supplies and ensure overall functionality. Devices are run under load for several hours to confirm repair effectiveness. In some cases, component-card or motor mismatches may prevent complete testing at our facility, requiring final verification during field installation by the customer.
Service and repair your broken Kollmorgen part
We can repair your Kollmorgen model BDS4A-206H-204B2 in our facility. Let our skilled technicians get your Kollmorgen back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
