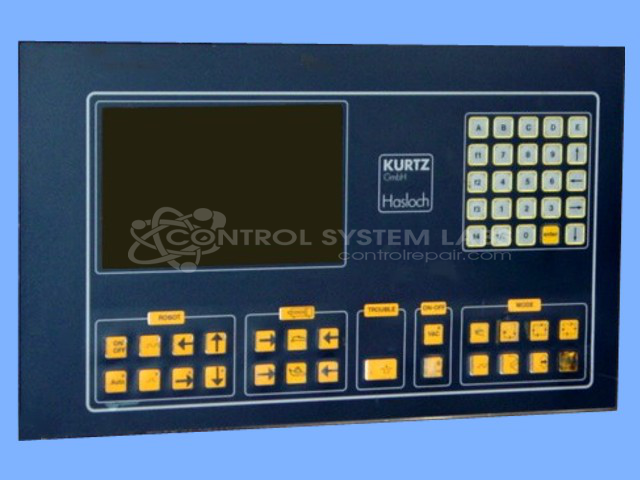

Kuhnke 635.001.99 Kurtz Operator and Control Panel
Repair
Repair Price: $ 5,868.00
Purchase
CSL Part Number: 71852
Product Overview: An industrial operator and control panel combining an LCD display with a keypad interface for machine monitoring and control. It features RS232 communication, battery-backed memory, and EPROM-based programming. Used as a human-machine interface for industrial machinery and automated production equipment.
Category: Operator & Control Panels
Manufacturer: Kuhnke
Manufacturer Part Number: 635.001.99
Also Known As(AKA): KDT635KURTZ
Limited repair to screen keypad communicatiuon & power supply only.
Common Failures
Customers frequently report issues with display malfunctions, such as improper display readouts or physical damage affecting the LCD screen and button overlays. These symptoms can impact the usability of the device by compromising both the visual output and user input areas.
Repair Approach
Repairs typically involve replacing defective components such as the LCD assembly, electrolytic capacitors throughout the main and power supply PCB, EPROMs, and batteries. Additional repairs may address the contrast control circuit and physical damage to the front panel. Cleaning and removal of debris are also often necessary as part of the restoration process.
Testing & Quality
Each repaired unit undergoes testing to verify functionality of the display and communication ports, with checks on keypad responsiveness and RS232 communications. Extended bench testing procedures are performed to evaluate reliability. Testing durations vary, with some units assessed over multiple hours.
Limited Repair
The Kuhnke part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Kuhnke part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
