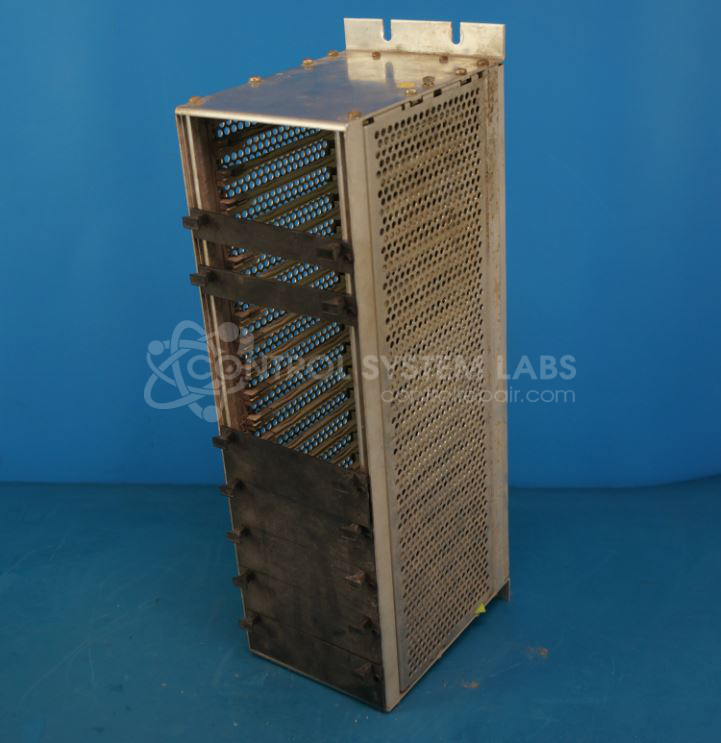

Kuhnke 657.400.23 Card Control Rack and Backplane

Repair

Call for price

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/65698/image_1920?unique=e3e2327
  • Condition

Purchase Price: $ 0.00 $ 0.00 0.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 82080
Product Overview: A card control rack and backplane that houses and interconnects modular control cards, including CPU and output cards, within an industrial automation system. It provides power distribution and signal routing across the card cage, incorporating a 5V regulator circuit and a battery-backed CPU card for memory retention.
Category: Backplane
Manufacturer: Kuhnke
Manufacturer Part Number: 657.400.23

Common Failures

A frequent issue observed in this product is related to the power regulation circuit, specifically a split core on the inductor within the 5V regulator circuit. This can result in poor performance or failure to power correctly.

Repair Approach

Our team evaluates each unit to identify the specific failure. Repairs may involve component-level work on the power regulation circuit, including inductor stabilization and capacitor replacement where appropriate. Battery replacement on the CPU card is performed when needed to restore functionality.

Testing & Quality

Post-repair testing verifies that the unit powers on and shows activity. We conduct quality checks to ensure repairs meet operational standards before the unit is returned. If no problem description is provided with the unit, we may be limited in our ability to diagnose or reproduce the reported issue, and the unit may be returned without repair.

Repair your broken Kuhnke part

We can repair your Kuhnke model 657.400.23 .
Please note: our repair turnaround time may be longer than our standard lead times for this item.

Step 1 -
Click the green button above, "Repair Now," and add to your RMA.
Step 2 - Print the RMA form that is emailed to you, and put it in a box with the parts for repair.
Step 3 - Mail the box to the address on the RMA.

You will be sent an authorization for repair via email. Your approval is needed before any work is started.
