CSL Part Number: 106157

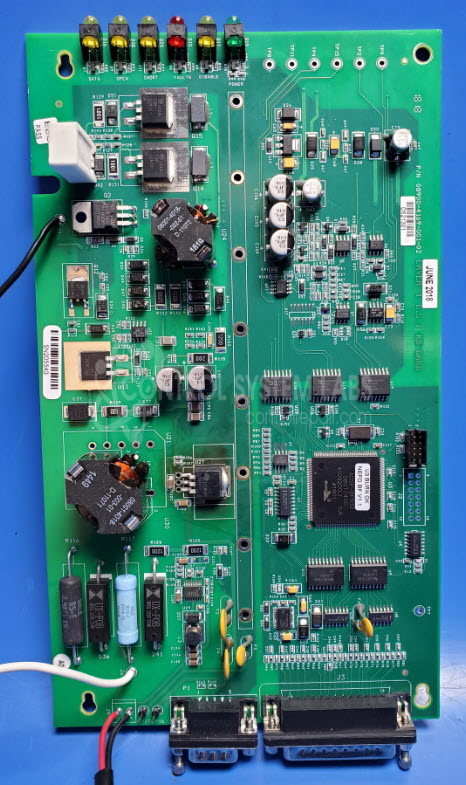

Product Overview: The Negative Electric Flame Off (EFO) Board from Kulicke & Soffa (PN 08900-4169-001-02) is a control board used in wire bonding equipment, specifically found in K&S 4524 and iBond series ball bonders. It manages the electronic flame-off function, which creates a ball at the end of the bonding wire before the bonding process begins. The board features a TL783C adjustable linear voltage regulator and operates on 12V DC power. This component is critical for precision semiconductor packaging and microelectronics assembly operations.
Category: Control Board
Manufacturer: Kulicke & Soffa
Manufacturer Synonyms: K & S, Kulicke & Soffa Industries, KNS
Manufacturer Part Number: 08900-4169-001-02
Limited Repair
The Kulicke & Soffa part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Kulicke & Soffa part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
