Repair
Repair Price: $ 674.00
Purchase
CSL Part Number: 116131

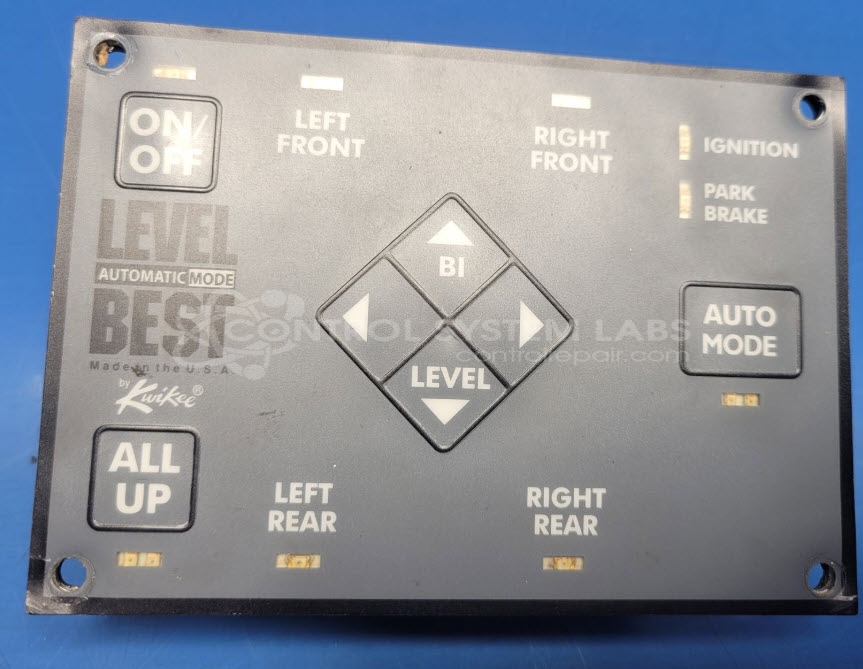

Product Overview: The Kwikee 11354B is a membrane keypad control panel used in RV automatic leveling systems. It interfaces with leveling jacks, controlling hydraulic pump operation and leg extension/retraction through directional buttons and an auto-leveling mode. The keypad features integrated metal dome buttons and built-in LEDs for status indication including ignition, park brake, and individual leg position feedback. It connects to the main control board via multi-pin connectors for button matrix and LED outputs, with inputs for ignition power, park brake signal, and leg retracted sensors.
Category: Operator Interface
Manufacturer: Kwikee
Alternate Manufacturer Names: Level-Best
Manufacturer Part Number: 11354B
Series: Kwikee 11543B

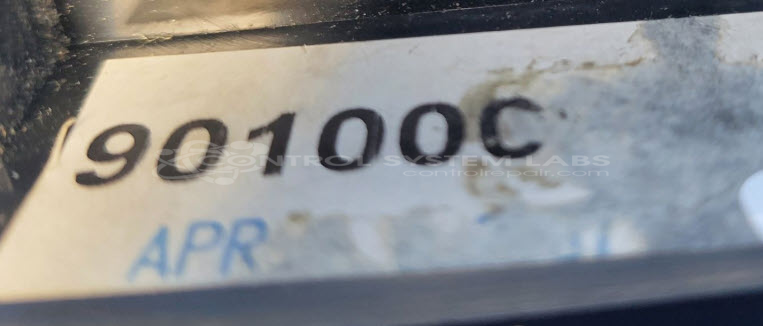

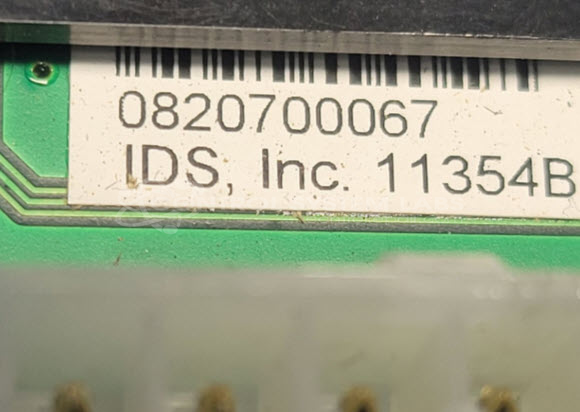

Also Known As(AKA): 0820700067 90100C
Other Synonyms: Level-Best
Common Failures
Units received for evaluation commonly exhibit power distribution issues, LED display concerns, and keypad functionality problems. Corrosion on connectors and internal components can contribute to unresponsive LEDs and buttons. Some units show power-related symptoms where the ignition or pump relay does not activate consistently, which may present as blinking LEDs or other operational inconsistencies.
Repair Approach
Our repair process typically includes cleaning corrosion from connectors and circuit board traces, evaluating and addressing LED matrix issues, and verifying keypad functionality. We examine circuit boards for damage, test button matrices, and assess relay operation. Keypads and overlays may require replacement when damaged. Diagnostic testing confirms button inputs and LED outputs are functioning as expected.
Testing & Quality
Units undergo diagnostic testing to verify operational integrity, including testing of directional inputs and pump relay functions. Keypads and LEDs are tested for responsiveness and electrical continuity. Post-repair testing confirms that button inputs and LED indicators are operational within the scope of available test procedures. Some features may remain untested due to documentation limitations. Units that pass available tests but exhibit symptoms not linked to observable faults may be returned with evaluation charges applied per our No Fault Detected policy.
Service and repair your broken Kwikee part
We can repair your Kwikee model 11354B in our facility. Let our skilled technicians get your Kwikee back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
